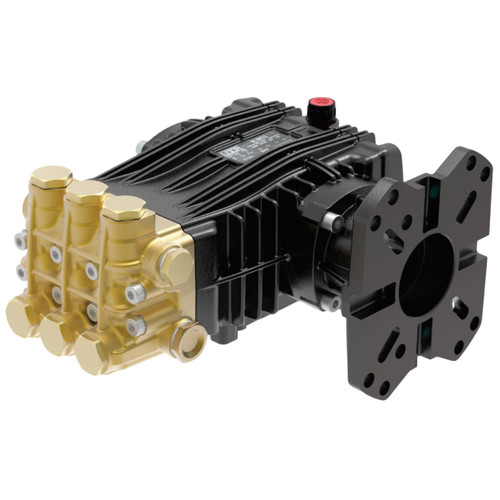

Udor BKL 5.0/36 W Plunger Pump Direct Drive W/ SAE J609-A Flange, 5 GPM, 3625 PSI

Udor BKL 5.0/36 W Plunger Pump Direct Drive W/ SAE J609-A Flange, 5 GPM, 3625 PSI

The Udor BKL 5.0/36 W Plunger Pump is a super-duty, direct-drive pump designed for gas engine applications requiring high pressure and durability. Delivering a maximum flow of 5 GPM and a pressure rating of 3625 PSI, this pump operates at 3400 RPM with an SAE J609-A flange and 1 in. hollow shaft for efficient power transfer. Built with a heavy-duty brass manifold, reinforced inlet and discharge ports, and high-strength connecting rods, it ensures long-lasting performance under demanding conditions. Ideal for pressure cleaning, sewer jetting, vehicle wash systems, and UHP fire fighting, the BKL Series combines strength, precision, and reliability for industrial-grade applications.

Industries: Pressure Washing, Truck Wash, Car Wash, Food Processing, In Plant Cleaning Systems, Graffiti Removal, Fire Fighting, Sewer Jetting, Hydro Excavating, Reverse Osmosis, Desalination Process, De-Mucking, Misting/Fogging/Cooling, Air Conditioning Cleaning, Ground and Sod Aeration, Machine Tool Coolant, Tree Debarking, Directional Boring and Drilling, Hydrostatic Testing, Soft Wash

Features

• Direct Drive Design: SAE J609-A flange with 1 in. hollow shaft for gas engine compatibility.
• Heavy-Duty Brass Manifold: External and internal bracing for superior strength.
• Durable Components: Bronze or aluminum alloy connecting rods for extended service life.
• Enhanced Valve Design: Large diameter brass valve caps with increased thread depth.
• Efficient Lubrication System: 15.4 oz vented oil bath crankcase for optimal lubrication.

Specifications

• Bar: 250
• Crankshaft Stroke/Code: 12.0mm/6
• GPM: 5.0
• Inlet: 1/2 in. BSP-F
• Lubrication: 15.4 oz Udor Lube
• Max Fluid Temp: 160°F
• Max Flow: 5.0 GPM / 19.0 L/min
• Max Pressure: 3625 PSI
• Model: BKL 5.0/36 W
• Outlet: 3/8 in. BSP-F Outlet
• Plunger Dia.: 15mm
• Power Requirement: 16.0 HP Gas Engine
• Rated Pump Speed: 3400 RPM
• Seal Kit: 6061.B2
• Shaft: SAE J609-A Flange, 1 in. Hollow Shaft
• Valve Kit: 6061.30

Downloads

Specification Sheet (PDF Download)
