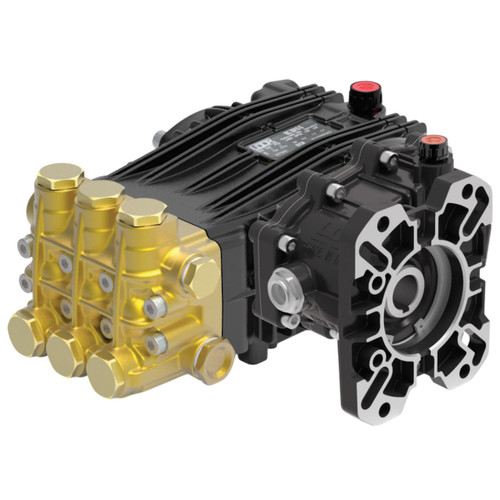

Udor BKC 15/30 GR Plunger Pump Gear Reduction Drive W/ SAE J609-B Flange 2.2:1 Gear Reduction, 4 GPM, 4350 PSI

Udor BKC 15/30 GR Plunger Pump Gear Reduction Drive W/ SAE J609-B Flange 2.2:1 Gear Reduction, 4 GPM, 4350 PSI

The Udor BKC 15/30 GR Plunger Pump is designed for heavy-duty applications such as pressure cleaning, sewer jetting, vehicle wash systems, and ultra-high-pressure firefighting. Built with a robust gear reduction drive featuring a 2.2:1 ratio and SAE J609-B flange, this pump ensures efficient power transfer and long-lasting reliability. Its heavy-duty brass manifold, reinforced ports, and large brass valve caps provide superior strength under extreme conditions. A vented oil bath crankcase with increased capacity enhances lubrication and durability. Delivering up to 4.0 GPM and 4350 PSI, this pump is ideal for professional-grade performance.

Industries: Pressure Washing, Truck Wash, Car Wash, Food Processing, In Plant Cleaning Systems, Graffiti Removal, Fire Fighting, Sewer Jetting, Hydro Excavating, Reverse Osmosis, Desalination Process, De-Mucking, Misting/Fogging/Cooling, Air Conditioning Cleaning, Ground and Sod Aeration, Machine Tool Coolant, Tree Debarking, Directional Boring and Drilling, Hydrostatic Testing, Soft Wash

Features

• Heavy-Duty Construction: Brass manifold with internal and external bracing for superior strength and longevity.
• Enhanced Durability: Bronze or high-strength aluminum alloy connecting rods and reinforced ports for maximum reliability.
• Optimized Performance: Gear reduction drive with 2.2:1 ratio for efficient power transfer and smooth operation.
• Improved Maintenance: Large brass valve caps with increased thread depth and deeper back cover for greater oil capacity.

Specifications

• Bar: 300
• Crankshaft Stroke: 14.5 mm
• Flange: SAE J609-B
• Flow: 4.0 GPM
• Gear Ratio: 2.2:1
• Inlet: 1/2 in. BSP-F
• Lubrication: 15.4 oz Udor Lube
• Outlet: 3/8 in. BSP-F
• Plunger Diameter: 18 mm
• Power Requirement: 16 HP Gas
• Pressure: 4350 PSI
• Pump Speed: 1450 RPM
• Seal Kit: 6061.28
• Shaft: 1 in. Hollow Shaft, SAE J609-B Flange
• Valve Kit: 6061.30

Downloads

Specification Sheet (PDF Download)
