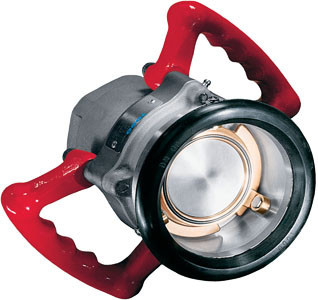

TODO-Matic 3 in. Stainless Steel Dry-Break Coupling w/ EPDM Seal - Mates with Todo Only

TODO-MATIC dry-break couplings have over 30 years of experience handling petrochemicals, gas and oil. Recognized for its ability to handle a wide range of demanding applications, this market-leading solution was among the first to introduce the NATO STANAG 3756 standard. The TODO-MATIC coupling assures operator safety through minimal residue loss and virtually zero spillage.

TODO-MATIC 3" coupling comes standard with EPDM seals.

Features

• High-grade materials
• Minimum operator intervention required
• Ability to handle aggressive fluids
• Minimal residue loss & virtually zero spillage
• Proven & trusted in the field

Specifications

• Brand: TODO
• Part Number: 1-9301F-4408
• Size: 3 in.
• Material: Stainless Steel
• Seal-Material: EPDM
• Connection: MannTek - Todo Style x FNPT
• Max. Working Pressure: Up to 25 bar (363 psi)
• Product Test Pressure: Up to 37.5 bar (544 psi)
• Standard Working Temperature: -20 to +80° C (-4 to +176° F)
• Optional Working Temperature: -45 to +150° C (-49 to +302° F)

Applications

From potable water to hydrochloric acid, the TODO-MATIC dry-break coupling has provided customers with a safe, easy and reliable means of transferring valuable and dangerous products for many years. Minimal operator intervention means loading and unloading is more efficient, be it on the road, rail, offshore rig or ship.
