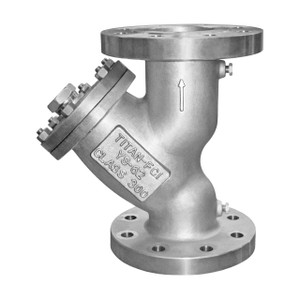

Titan Flow Control YS62S0200 2 in. Y-Strainer, Flanged, Stainless Steel - ASME Class 300

Titan Flow Control YS 62-SS Flanged Stainless Steel Y-Strainer - ANSI Class 300 Description

Titan Flow Control's YS62 has convenient gauge taps furnished with a plug on both the inlet and outlet sides of sizes 2 - 12 in. These taps allow for easy installation of pressure gauges to monitor differential pressure and determine when screen cleaning is necessary.

Replacement screens and gaskets available. Please call 1 (800) 333-3331 for more information.

Note: Stainless steel is commonly specified for high temperature service, up to 1000°F in continuous service. Stainless steel strainers are commonly found in the chemical, food, and pharmaceutical industries.

Features

• Large Straining Capacity: With its large body and sizable straining element, the YS62 provides excellent open area ratios that are typically two-and-a-half times larger than the corresponding pipeline
• Precision Machined Seats: Precision machined screen seats in both the body and cap help to ensure accurate positioning for the screen during reassembly after cleaning - Also, the machined body seats enable finer filtration by preventing debris bypass
• Self Cleaning Capability: With a tapped NPT blow-off connection this unit can be fitted with a blow-down valve which facilitates cleaning of the straining element - please call for more information
• Optional Cover Designs: Titan's YS62 is available with different cover options including swing, clamp, and hinge type covers - Please call for more details

Specifications

• Sizes: 1/2 - 8 in. - Larger sizes available - Please call for more information
• End Type: Flanged
• Material: Stainless Steel (A351 Gr. CF8M)
• Type: Y (Wye) Strainer
• ANSI Class: 300
• Pressure/Temperature Rating- Sizes 2 - 12 in.: 720 PSI @ 100°F
• Referenced Standards & Codes: ASME/ANSI B16.5 - Pipe Flanges and Flanged Fittings; ASME/ANSI B16.34 - Flanged, Threaded, and Welding End
• 2 - 4 in. Standard Screen Selections:
• Liquid: 1/16 (.0625)
• Open Area: 41%
• 5 - 8 in. Standard Screen Selections:
• Liquid: 1/8 (.125)
• Open Area: 40%
