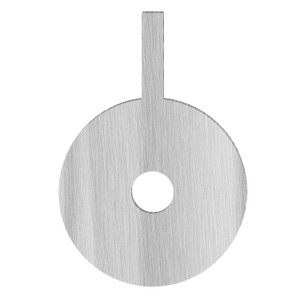

Titan Flow Control RP22SS0500 6 in. Orifice Plate, Stainless Steel, 1/8 in. Thick - 300#

Titan Flow Control 6 in. Stainless Steel 1/8 in. Thick Orifice Plate Description

Titan Flow Control 6 in.  Stainless Steel 1/8 in. Thick Orifice Plate. Orifice plates can advance your system's performance, adjust flow rates, balance back flow and equalize back pressure. It reduces flow and pressure from the upstream side to the downstream side. This is beneficial in order to reduce noise and protect downstream equipment. Achievable benefits while maintaining sanitary conditions.

The bore diameter and additional bore requirements should be specified when ordering.

• Concentric or Eccentric Placement
• Radiused Edges
• Full or Segmented Openings

Contact a JME Sales Specialist at 800-333-3331

Features

• Easy to install and remove
• Efficient and reliable
• Available in stainless steel
• Easy to measure flow rate

Specifications

• Size: 6 in.
• Pressure Class: 150# 300#
• Material: Stainless Steel
• Thickness: 1/8 in.
