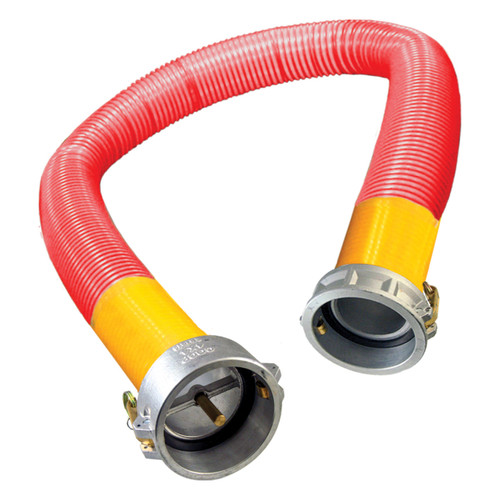

Texcel 4 in. SPVC-VRH-4 Vapor Hose Assemblies w/ C x CV Ends

Texcel 4 in. Vapor Hose is a high quality vapor recovery hose for heavy duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as Ethanol (up to E-98) and biodiesel vapors (B-100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures. Fully assembled with banding sleeves and quick couplings. We cut all our hose to length, attach the ends, and ground all of our hose assemblies. Please call for pricing on other vapor hose assemblies, due to the wide variations of hose length and fittings involved. We want to be sure you get the right vapor hose for your application. Other lengths and fittings available - please call 1-800-333-3331 for details!

Hose Ends:Hose assemblies come with a standard 4 in. Part C female coupling on one end and a 4 in. Part CV coupler with probe on the other.

Part C = Female Coupler x Hose Shank
Part CV = Female Coupler With Probe x Hose Shank

Features

• Lightweight and flexible even in sub-zero temperatures
• Polyurethane construction allows use with all gasoline, diesel and most biofuels, such as Ethanol (up to E-98) and biodiesel vapors (B-100 meeting ASTM D-6751)
• Static dissipating tube combined with multi-strand copper static wire provides the ultimate protection against static discharge
• Clear tube allows visual confirmation of fuel backup into the hose

Specifications

• Series: SPVC-VRH-4
• Inside Diameter (I.D.): 4 in. (101.6 mm.)
• Outside Diameter (O.D.) 4.59 in. (116.6 mm.)
• Length: 10 - 30 ft. - Other Lengths Available - Please Call 1-800-333-3331 for More Information
• Hose Ends: 4 in. Female Coupler x 4 in. Female Coupler with Probe (CxCV)
• Material: Clear, Specially Compounded Polyurethane with Rigid PVC, Right Handed Helix, Embedded Tin Coated Copper Wire
• Minimum Bend Radius: 5.5 in.
• Working Pressure: 11 PSI
• Vacuum Rating: 29 in. Hg
• Temperature Range: -40°F to +150°F (-40°C to +65.6°C) - Service Temperature Depends on Actual Application
• Fuel Compatibility: Gasoline, Diesel and Most Biofuels, Such as Ethanol (up to E98) and Biodiesel Vapors (B100 Meeting ASTM D-6751)
• Color: Red
• Weight: 1.28 lbs./ft.
