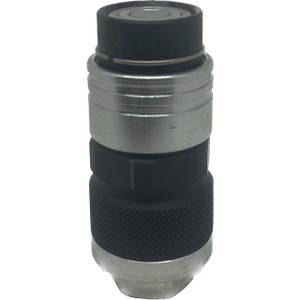

Stucchi VP 1/2 in. Carbon Steel Flat Face Nipple W/ Autolock 3/4 in. SAE, 23.85 GPM

Description

The VP Series Auto-Lock Sleeve threaded Flat Face Coupler is the most popular solution for high residual pressure. With an autolock sleeve and the ability to connect/ disconnect with residual pressure, the VP series provides positive secondary retention in hydraulic circuit applications subject to high-pressure impulses and circuits which experience high residual or trapped pressure in a line. The "VP-P" screw flat face coupling series is the technological solution to demanding hydraulic applications. The screw connection system eliminates premature wear and the "brinelling" caused by a mechanical locking ball system. This makes the "VP-P" series suitable for high operating and impulse pressures. The triple valve system allows connection of the coupling safely even in presence of high internal residual pressure and at the same time avoiding fluid loss. The safety sleeve integrated in the connection system prevents accidental disconnection making the "VP-P" series ideal for the most extreme operating conditions where strong vibration and torsion issues are present.

Features

• Easy connection/disconnection with both side under residual pressure thanks to the Stucchi design.
• Flat face is easy to clean, reducing the inclusion of contamination inside the hydraulic circuit.
• Specific dimensions of Stucchi VP-P series are certified with Lloyd Type Approval in accordance with API 16D at specific rating pressure of 345 bar/5000 PSI.
• Minimal fluid spillage during disconnection, reducing fluid spillage to the environment.
• Minimal air inclusion during connection.
• Internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
• Internal pressure release valve system allows an easy connection with high internal residual pressure.
• The safety sleeve integrated in the connection system prevents the accidental disconnection.
• The modular design allows flexibility with a wide range of configurations.
• High resistance to pressure impulses.
• Safe and simple to use

Specifications

• Brand: Stucchi
• Series: VP
• Product Type: Flat Face Nipple W/ Autolock
• Interchange: Stucchi profile
• Flow Rate: Up to 750 l/min
• Max Flow Rate (GPM): 23.85
• Operating Temp: -4°F / 212°F (-20°C / +100°C)
• Material: Carbon Steel
• Seal: Nitrile NBR
• Body Size: 1/2 in.
• Port Size: 3/4 in.
• Thread Type: SAE
• Port Option: SAE
• Max Operating Pressure Coupled (PSI): 7975
• Burst Pressure *Uncoupled (PSI): 20300
• Spillage (ml): 0.02
• Weight: 2.051
• Dimensions: 4.33x1.93 in
• Max Burst Pressure Coupled (*PSI): 20300
