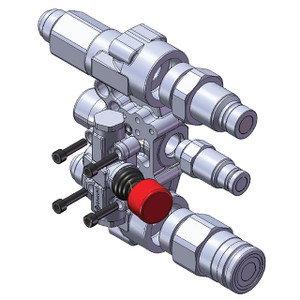

Stucchi SATURN BLOCK 5/8 in. Carbon Steel Coupler 52 GPM

SKU:
STU808313032
Manufacturer:
Stucchi
Material:
Carbon Steel
Weight:
1.48 LBS
$74.02
The image shown is for illustration purposes only. The actual product may vary.
Adding to cart… The item has been added

Description

The Saturn Block allows for easy connection/disconnection with residual pressure, with a user-friendly relief system that drains the residual pressure before connection and disconnection, for connection without pressure or effort to reduce injury risk. The Saturn Block is a direct field replacement for other connect under pressure systems.

Specifications

  • Brand: Stucchi
  • Series: SATURN BLOCK
  • Product Type: Coupler
  • Interchange: ISO 16028
  • Flow Rate: Up to 200 l/min
  • Max Flow Rate (GPM): 52
  • Operating Temp: -4°F / 212°F (-20°C / +100°C)
  • Material: Carbon Steel
  • Seal: Nitrile NBR
  • Body Size: 5/8 in.
  • Port Size: 1 in.
  • Port Option: ORFS
  • Max Operating Pressure Coupled (PSI): 4785
  • Burst Pressure *Uncoupled (PSI): 14500
  • Spillage (ml): 0.02
  • Weight: 1.482
  • Dimensions: 3.44x1.76 in
  • Max Burst Pressure Coupled (*PSI): 14500
