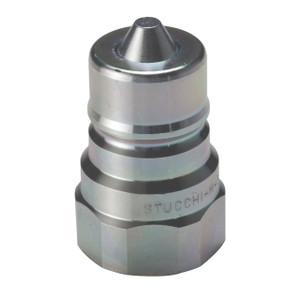

Stucchi BIR 3/8 in. Male ISO A Interchange Coupler 3/8 in. NPT, 12.19 GPM

Description

The BIR Series ISO A Interchange Couplers are one of the most popular designs worldwide, due to their durability and use of a poppet style valve for the sealing mechanism. The BIR series features a zinc plated steel coupler and zinc plated hardened steel nipple, with nitrile seals. They are available from size 1/4 to 2 inches in size, to cover the various fields of hydraulic applications.

NOTE: Female Coupling is sold separately.

Features

• Interchanges with ISO A
• Positive-stop valving prevents flow checking
• Large diameter hardened steel sleeves resist deformation for maximum life
• Suitable for open or closed center hydraulic system
• Various fields of hydraulic applications Such as Agricultural and mobile equipment, Industrial plants

Specifications

• Brand: Stucchi
• Series: BIR
• TYPE: Male
• Port (A): 3/8 in.
• Body size: 3/8 in.
• Port Option: NPT
• Product Type: ISO A Interchange Coupler
• Dimensions: 1.5 × 0.94 in
• Spillage (ml) : 1.2
• Valving style: Poppet
• Interchange: ISO 7241 A
• Sealing: Nitrile NBR
• Connection system: Pull back the sleeve and push
• Disconnection system: Pull back the sleeve
• Material: Carbon steel
• Treatment: Cr3
• Locking mechanism: Locking ball
• Disconnectable under pressure: No
• Thread: Female Thread Npt (Ansi B.1.20.1)
• Connectable under residual pressure: No
• Temperature: -20 / +100 °C; -4 / +212 °F
• Applications: Agriculture, Industry
• ISO DN (mm): 10
• Max. Flow Rate (GPM): 12.19
• Max. Operating pressure - coupled (PSI): 4350
• Operating pressure - uncoupled (PSI): 4350
• Burst pressure - coupled (PSI): 14500
• Burst pressure - uncoupled (PSI): 14500
• Connect force (lbf): 20.25
• Disconnect force (lbf): 6.75
• Spillage (ml): 1.2
• Length (in): 1.5
• Max. diameter (in): 0.68
• Weight (lb): 0.12
