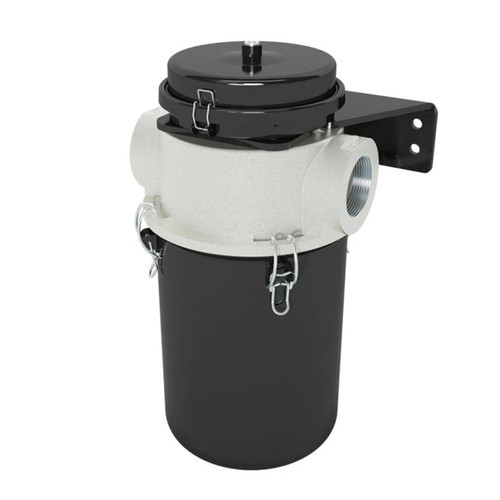

SOLBERG ACV5000L 50 CFM Closed Crankcase Ventilation Bypass Filter Assembly, 2 in. NPSC Left Side Connection

SOLBERG ACV5000L 50 CFM Closed Crankcase Ventilation Bypass Filter Assembly, 2 in. NPSC Left Side Connection Description

The Solberg ACV5000L is an advanced closed crankcase ventilation (CCV) bypass filter assembly designed to effectively capture engine blow-by gases and eliminate visible oil mist emissions. Utilizing a high-performance coalescing element rated at 0.3 microns, the unit achieves 99%+ efficiency, protecting critical engine components such as turbochargers and coolers from contamination. The integrated diaphragm-style vacuum control valve maintains precise crankcase pressure without the need for manual adjustments, ensuring consistent system performance. Built with a durable, corrosion-resistant powder-coated carbon steel housing, the ACV5000L is engineered for reliability in demanding environments, including stationary, emergency, and marine engine applications. Its user-friendly design, including a drop-down collection bucket and drain port, allows for quick maintenance and efficient oil recovery.

Features

• High-Efficiency Filtration: Removes 99%+ of oil mist at 0.3 microns for cleaner operation
• Integrated Vacuum Control: Maintains precise crankcase pressure with automatic diaphragm regulation
• Coalescing Media Performance: Provides superior oil separation and extended service life
• No Manual Adjustment Required: Spring-free diaphragm design ensures consistent vacuum control
• Durable Housing Construction: Corrosion-resistant powder-coated carbon steel for long-term use
• Easy Maintenance Access: Drop-down bucket simplifies element replacement
• Oil Recovery System: Integrated drain port allows captured oil to be collected
• Flexible Installation: Universal mounting bracket supports multiple configurations

Specifications

• Case Quantity: 1
• Connection Size: 2 in.
• Connection Type: NPSC
• Dimensions: 11 in. L x 5.3 in. W x 21.9 in. H
• Efficiency: 99%+ at 0.3 micron
• Finish: Aluminum / Black Powder Coat
• Flow Rate: 50 CFM
• Inlet Size: 2 in.
• Media: Coalescing
• Micron Rating: 0.3
• Outlet Size: 2 in.
• Qty Per Box: 1
• System Type: Closed
