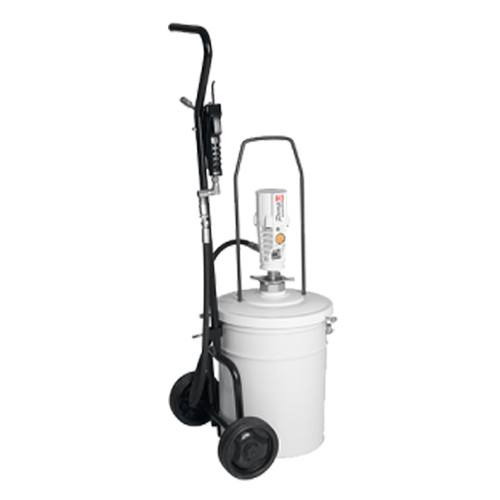

Samson PumpMaster 3, 55:1 35 lb. Drum Pump System w/ 5 ft. Hose

Samson's PumpMaster 3 Series Drum Pump System Package (319) is built for 35 lbs. pump packages. This package comes with a 5 ft. hose that is a 1/4 in. NPT hose. This pump package from Samson serves customers with a 55:1 ratio, allowing for peak performance for pumps under 35 pounds.

The 319 pump package includes the following items: a 5 ft. x 1/4 in. NPT delivery hose, a drum cover, a follower plate, a grease handle, a straight swivel and a carry handle. Shop the JME site for the best selection of Samson Ronnoco pump packages today.

Features

• Each PM3 pump is light weight and serviceable.
• Effectively acts as a double acting high pressure air operated pump and portable greasing units.

Specifications

• Weight: 21 lbs.
• Pressure Ratio: 55:1
• Maximum Flow Rate: 1.2 lb/min
• Air Pressure Range: 20-140 PSI
• Outlet Pressure: 7,700 PSI
• Air Consumption: 5.8 SCFM
• Outlet Size: 1/4 in.
• Thread Type: Female NPT
• Materials: Aluminum, Steel, NBR, PTFE

Downloads

Specification Sheet (PDF Download)

Product Manual (PDF Download)
