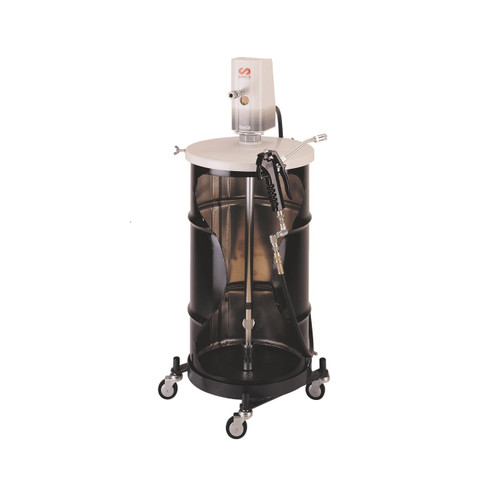

Samson 303141 PM3 Series Pumpmaster 3 55:1 120 lb. Mobile Grease Pump Package

Samson PM3 Series Pumpmaster 3 55:1 120 lb. Mobile Grease Pump Package

A powerful solution for your grease pumping needs. With a 55:1 ratio, the PM3 Series utility high-pressure pumps are designed for efficiency and reliability. These lightweight, double-acting high-pressure air-operated pumps have been specially crafted for mobile and portable greasing units. The PumpMaster 3 is your reliable partner for efficient grease pumping, making it ideal for various industrial applications.

Note: Pumps include a height adjustable 2 in. NPTM bung adapter.

Features

• High-Performance Grease Pump: The PumpMaster 3 boasts a 55:1 ratio, ensuring efficient grease delivery.
• Height Adjustable Bung Adaptor: The included 2 in. NPTM bung adaptor can be adjusted to fit your specific drum requirements.
• Air Operated: These pumps are powered by air pressure, offering reliability and ease of use.
• Suitable for NLGI-2 Grease: Handles grease up to NLGI-2 viscosity for a wide range of applications.
• Durable Construction: Made with steel, NBR, and PTFE materials to ensure longevity and performance.
• Low Noise Level: Operates at a noise level of 85 dB, minimizing workplace disturbance.

Specifications

• Pump Ratio: 55:1
• Air Pressure Operating Range: 20 to 140 psi (1.5 to 10 bar)
• Air Consumption: 5.8 scfm (165 NL/min)
• Maximum Fluid Outlet Pressure: 7,700 psi (550 bar)
• Air Motor Diameter: 2 3/4 in. (70 mm)
• Air Motor Stroke: 1 1/2 in. (35 mm)
• Delivery at 110 cpm: 0.7 lb/min (300 g/min)
• Maximum Free Flow Delivery: 1.2 lb/min (540 g/min)
• Air Inlet: 1/4 in. NPTF
• Fluid Outlet: 1/4 in. NPTF
• Wetted and Seal Materials: Steel / NBR / PTFE

Includes

• PumpMaster 3 – 55:1 120 lb. w/ 10 ft. Hose, Band Dolly
• PM3 55:1 120 lb. keg pump
• Drum Cover
• Follower Plate
• Delivery Hose 10 ft. x 1/4 in.
• Grease Handle
• Z-Swivel
• 1/4 in. Quick Air Coupler
• 1/4 in. Quick Air Nipple
• 1/4 in. Mini Piggyback F/R w/ Gauge
• 1/4 in. Pump to FR Connector
• Band Dolly

Downloads
