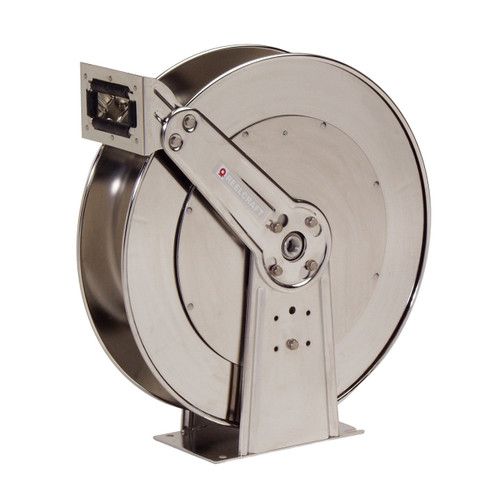

Reelcraft D84000 OLS-S Stainless Steel Hose Reel - Reel Only - 1 in. x 50 ft. - 500 PSI

Description

Reelcraft's stainless steel hose reels are ideal for food processing, pre-rinse, wash down, chemical transfer, and industrial-solvent handling. Also suitable for coastal, offshore, and on-board ships in marine applications where the harsh environment of salt water spray requires the use of stainless hose reels. Swivel includes Viton O-rings. Reel includes stainless steel latch parts and fluid path.

Features

• Reinforced steel: The steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to ensure maximum strength and the lightest possible weight. The unitized cast fluid path and ratchet reduce wearable parts and ease of assembly.
• Full flow stress-free swivel design: The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
• Quality finish and corrosion resistant: Stainless steel components offer maximum protection from premature corrosion.
• Made in the USA

Specifications

• Brand: Reelcraft
• Series: 80000
• Part Number: D84000 OLS-S
• Weight: 92 lbs
• Hose Included: No
• Product Type: Spring Rewind
• Hose I.D.: 1 in.
• Hose O.D.: 1.375 in.
• Capacity: 50 ft.
• Pressure: 500 PSI
• Inlet: 1" NPT(F)
• Size: 1 in.
• Reel Outlet: 1" NPT(F)
• Hose Included: No
• Max Temperature: 210 °F
• UPC: 699567017745
• Carton Dimensions: 27.5 in. x 13.625 in. x 27.625 in.
• Internal Fluid Path Material : Stainless Steel
• Swivel Assembly Material: Stainless Steel
• Swivel Seal Material: FKM

Downloads

Product Manual (PDF Download)
