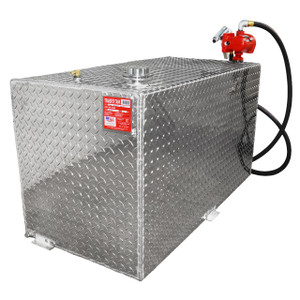

RDS Manufacturing 113 Gallon Aluminum Rectangle Transfer Tank w/ Fill-Rite 12V DC 15 GPM Fuel Transfer Pump

RDS Manufacturing 113 Gallon Aluminum Rectangle Transfer Tank w/ Fill-Rite 12V DC 15 GPM Fuel Transfer Pump

The RDS Manufacturing 113 Gallon Aluminum Rectangular Transfer Fuel Tank is a high-performance, DOT-approved solution for transporting diesel, gasoline, or aviation fuel. Proudly made in the USA, this tank is constructed from heavy-duty, rust-resistant 0.125-inch aluminum and features fully welded seams for superior durability. Each tank undergoes 100% pressure testing to ensure leak-free performance. Designed with built-in baffles to minimize fuel sloshing and a vehicle rollover safety valve, this tank offers both safety and reliability. Ideal for commercial and industrial use, it includes a 2-inch female pipe thread coupling for a manual or 12V transfer pump (sold separately) and a 3/8-inch NPTF(F) drain plug for easy maintenance.

The Fill-Rite FR1210H 12V DC Fuel Transfer Pump is a trusted industry-standard solution for transferring gasoline, diesel fuel, and kerosene. Designed for durability and portability, this pump delivers a flow rate of up to 15 GPM (57 LPM) while maintaining a low amp draw, making it ideal for mobile fueling applications that rely on DC power sources.

This complete pump package includes a 12-foot static wire hose and a manual dispensing nozzle, offering reliable, hands-on control during operation. Whether you're servicing vehicles in the field or refueling equipment onsite, the FR1210H is engineered for dependable performance in demanding environments.

Note: The FR8 pump is lockable, recommended lock to use is Master Lock 140DLH

Note: Transfer tanks have a drain plug and can be used to gravity feed diesel.

Attention: Adhere to these guidelines before installation. Failure to follow these guidelines will result in voiding your warranty.

• The fill cap location and pump location cannot be swapped.
• Do not install risers between the fuel tank fitting and the pump.
• Do not use extension pipes to raise the height of the transfer pump.
• Do not install a pump over 30 lbs. to a standard duty tank. For pumps over 30 lbs., a Severe Series tank must be used. The 30 lb. limit includes pump and any other accessories such as filter kit, meters, etc.

Features

Tank Features

• Heavy-Duty Aluminum Construction: Built from 0.125-inch thick aluminum that resists rust and corrosion for long-lasting performance.
• DOT Approved for Fuel Transport: Certified for safe transport of diesel, gasoline, or aviation fuel.
• Fully Welded and Pressure Tested: Every tank is 100% pressure tested and features fully welded seams to prevent leaks.
• Built-In Safety and Stability: Includes internal baffles to reduce fuel movement and a rollover safety valve for added protection.
• Pump-Ready Design: Equipped with a 2-inch female pipe thread coupling compatible with manual or 12V transfer pumps (sold separately).

Pump Features

• Up to 15 GPM
• Explosion-proof
• 1/4 HP motor with permanent magnet and ball bearings
• Cast bronze rotor with bronze rotary vanes
• Automatic bypass valve
• Built-in strainer
• 2 in. threaded base for tank mounting
• Pump may be padlocked
• No foot valve required
• Rain-proof
• Steel telescoping suction tube
• Compatible with diesel, gasoline, kerosene, E15, biodiesel up to B20
• Heavy-duty cast iron construction
• Includes a two-wire battery cable
• 12 ft. hose with static wire
• Limited lifetime warranty

Specifications

Tank Specifications

• Capacity: 113 Gallon
• Dimensions: 48 in. L x 23 3/4 in. W x 26 in. H
• Finish: Diamond Plated
• Material: Aluminum
• Shape: Rectangle
• Weight: 115 lbs. (Assembled)

Pump Specifications

• Flow Rate: Up to 15 GPM
• Voltage: 12V DC
• Inlet: 1 in.
• Outlet: 3/4 in.
• Bung Mount: 2 in. NPT
• Housing Material: Cast iron
• Horsepower: 1/4
• Power Cord Length: 18 ft.
• Amps: 20
• Duty Cycle: 30 Min
• Package Contents:
• Fill-Rite FR1210H 15 GPM 12 Volt Pump
• Fill-Rite 20 - 34-3/4 in. Steel Telescoping Suction Pipe
• 3/4 in. x 12 ft. Hose w/ Static Wire
• 3/4 in. Manual Nozzle
• Fill-Rite 18 ft. Battery Cable
• Common Applications: Standard use with Mobile Tanks, Small Tractors & Equipment, Pick-up Trucks, ATVs, Snowmobiles, Racing/Automotive, Electrical/Plumbing Contractors & More

Important Notes:

• Mounting tabs extend out 1 in. - adds 2 in. to total length and 1 in. to total width
• Add 2 1/2 in. for fill cap height
• Always measure the truck's bed for clearance at corners, wheel wells, etc.

Downloads

Installation Instructions (PDF Download)

RDS DOT Permit (PDF Download)
