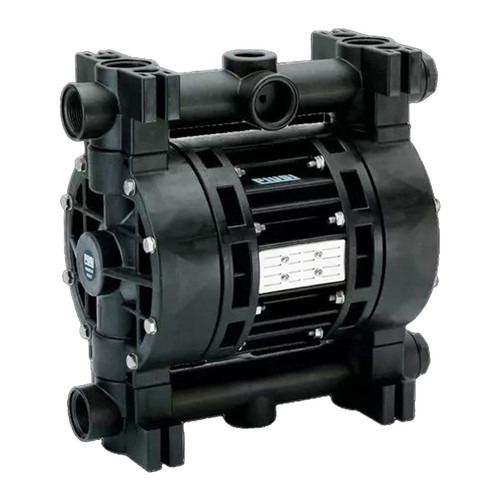

PIUSI MP190 1 1/4 in. Air-Operated Diaphragm Pump - 58 GPM

Description

PIUSI MP 190 DEF transfer pump, bidirectional, double diaphragm, built-in diffuser DEF pump. Ideal for explosive environment, ATEX certification. Explore it now. PIUSI MP 190 is a 1-1/4"NPT air-operated diaphragm pump for transferring DEF. The PIUSI MP 190 pneumatic pump with double diaphragm, designed to ensure maximum reliability and high performance, comes from the steady study and experience in systems for transferring fuels and fluids. The diaphragm pneumatic pump is indicated for transferring various types of fluids including chemical liquids such as DEF, water, antifreeze or washer fluid, and is particularly suitable for use in potentially explosive environments (ATEX certification for zone 2) or in heavy-duty situations. The PIUSI MP 190 diaphragm pneumatic transfer pump consists of a sturdy central body in technopolymer, while the side half-shells and the suction and delivery manifolds are in polypropylene. The high quality diaphragms in thermoplastic materials used for this pump ensure a safe and clean transfer of chemical liquids such as DEF, water, antifreeze or windscreen washing liquids. The pneumatic circuit guarantees an excellent operation, while the construction principle makes the PIUSI MP 190 pneumatic diaphragm transfer pump particularly indicated for applications in potentially explosive environments (ATEX certification for zone 2).

Features

• Bidirectional
• Built-in diffuser
• Suitable for submersible installation
• Heavy duty
• Easy to install
• Sturdy design

Specifications

• Brand: Piusi
• Flow Rate: Up to 58 GPM
• Self-Priming: 20 Ft. (Max Capacity)
• Pressure: Max 101 PSI
• Passing Solid: Ø 0.16 in.
• Pump Body: Polypropylene
• Size: 1 1/4 in.
• Flow Rate: 58 GPM
• Membrane Type: Double
• Diaphragm: PTFE/Hytrel
• Balls: PTFE
• Ball Seats: Polypropylene
• O-Ring: PTFE
• Intake / Delivery Connection: G 1/4 In. F
• Air Connection: G 1/2 In. F
• Max Self-Priming Capacity: 20 ft.
• Max Head: 230 ft.
• Max Air Supply Pressure: 101 PSI
• Max Ø Of Passing Solid: .16 in.
