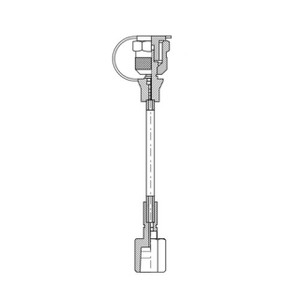

PCI H900-993-08 Micro Hose M16 X 2 Female X 1/4 in. NPT Female - 8 in. Length

PCI H900-993-08 Micro Hose M16 X 2 Female X 1/4 in. NPT Female - 8 in. Length

The H900 Series Diagnostic Couplings/Micro Hoses provide a reliable and leak-proof solution for pressure monitoring, venting, and fluid sampling applications. Designed to handle pressures up to 5800 PSI during connection and disconnection, these couplings feature a self-locking metal cap for enhanced safety. With a robust rated pressure of 9000 PSI and compatibility with leading brands, the H900 Series is the ideal choice for testing systems at working pressure in various industrial environments.

Features

• Leak-Proof Connection: Ensures a secure, reliable seal to prevent fluid leakage
• Self-Locking Metal Cap: Maintains safety and prevents accidental disconnection under extreme conditions
• Working Pressure Testing: Capable of testing hydraulic and fluid systems at their normal operating pressure
• Connect/Disconnect Under Pressure: Operates effectively up to 5800 PSI, allowing convenient connection and disconnection without system downtime

Specifications

• Size: M16 X 2 Female X 1/4 NPT Female
• Length: 8 in.
• Temp. Rating: -22°F to 212°F
• Rated Pressure: 9000 PSI
• Interchangeable With: Stauff, Parker

Downloads

Product Literature (PDF Download)
