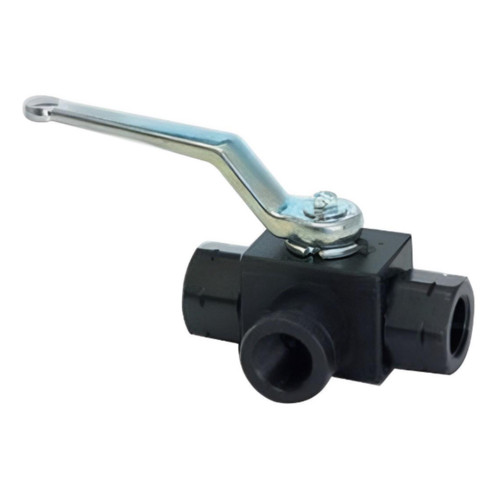

PCI BK3-34-SAE-1125-L 3/4 in. x 1 1/16 in. -12 ORB Full Port Three-Way Diverter Valve - 5145 PSI, Black Oxide Coating

PCI BK3-34-SAE-1125-L 3/4 in. x 1 1/16 in. -12 ORB Full Port Three-Way Diverter Valve - 5145 PSI, Black Oxide Coating

The PCI BK3 Series Three-Way Diverter Valve offers durable and efficient fluid control for industrial applications. Its full port design and advanced sealing components provide reliable performance, while its versatile connection options make it adaptable to a variety of systems. Built with high-quality materials and precision engineering, this valve is ideal for high-demand environments.

Features

• Durable Build: Block body with black oxide coating for superior strength and corrosion resistance
• Optimized Flow: Full port design ensures maximum flow efficiency with minimal pressure drop
• Sealing Performance: Equipped with FKM/FPM O-rings and POM ball seats for reliable sealing and longevity
• Temperature Range: Operates efficiently between -20°F and 215°F for diverse environments

Specifications

• Size: 3/4 in.
• Thread Size: 1 1/16 in. -12 ORB
• PSI: 5145
• Body: Block design
• Ball Seats: POM (Polyacetal)
• O-Rings: FKM/FPM
• Coating: Black oxide
• Temperature Range: -20°F to 215°F
• Ball: Nickel plated
