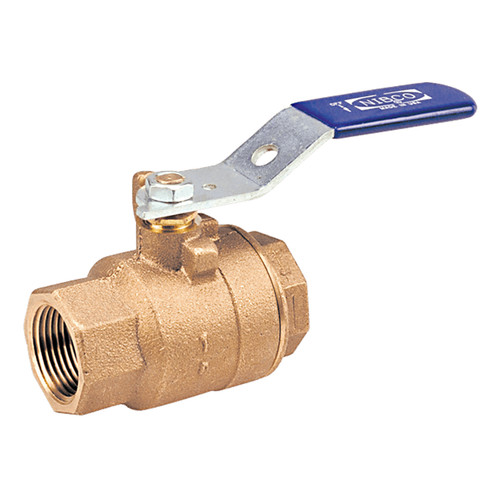

NIBCO Two-Piece 1/4 in. Bronze Ball Valve - Full Port

NIBCO® 's bronze ball two-piece valve delivers air-tight shutoff when 600 PSI is reached. The reinforced PTFE seat ring and hard chrome brass plated balls allow for high chemical resistance and compatibility within the valve. The NIBCO two-piece valve's recommended applications include: HVAC, hot & cold domestic water, compressed air, low pressure streams, and many high-pressure applications.

Features

• 600 PSI valve pressure rating and 41.4 bar non-shock cold working pressure.
• 400°F Maximum temperature.
• Full port available on valve
• Comes with chrome plated brass ball and silicone bronze stem.
• Has a blowout-proof stem to prevent blowouts.
• A standard lever handle provided with valve.
• Threaded end connections come standard
• Dezincification resistant
• Prohibited from use in U.S. drinking water applications after 1/3/2014.
• MSS SP-110 Compliant.

Specifications

• Material: bronze.
• Two-piece body.
• Full port 1/4 in.
• Bronze trim.
• Blowout-proof stem.
• 600 PSI & 41.4 bar non-shock cold working pressure.
• 150 PSI & 10.3 bar saturated steam.
