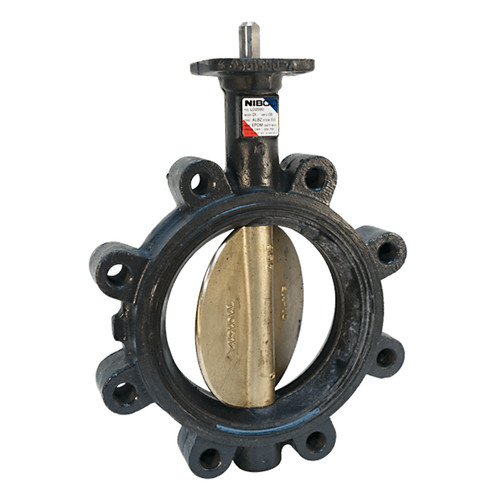

NIBCO 2 1/2 in. Butterfly Valve - 200 PSI, Ductile Iron & Lug Type

NIBCO®'s butterfly lug type valve provides a bi-directional dead-end service valve without downstream flange, which shuts off at 200 PSI. This provides an air-tight shutoff to give you peace of mind. The NIBCO butterfly valve is ideal for the following applications: commercial and light industrial processes, HVAC, vacuum services, and hot and cold potable water.

Features

• 200 PSI valve pressure rating
• 225°F continuous & 250°F intermittent service
• Lug style butterfly valve
• EPDM molded-in seat liner & built on aluminum bronze disc
• Stainless steel stem coated with copper bushings
• Product is lead-free
• Meets following designations: MSS SP-67, MSS SP-25, API 609, U.S. Coast Guard Category A, California Health and Safety Code Section 116875, Vermont Act 193
• Included features: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation

Specifications

• Ductile iron body
• Extended neck on the valve
• Geometric drive
• Molded-In seat liner
• Lug and wafer style valve
• Materials: EPDM rubber, aluminum, ductile iron

Downloads

Specification Sheet (PDF Download)

Product Literature (PDF Download)
