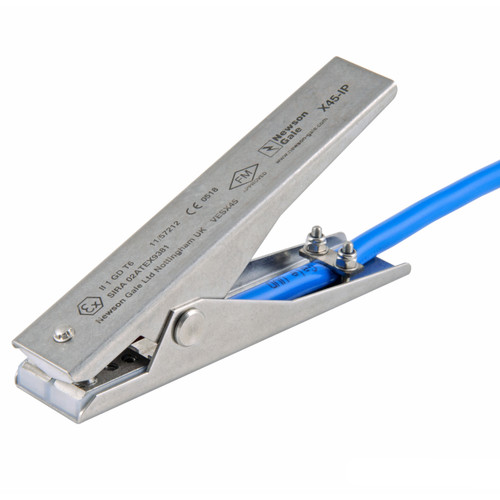

Newson Gale VESX45-IP Medium Size Heavy-Duty Static Grounding Clamp

Newson Gale has designed their Medium Size Heavy-Duty Static Grounding Clamp (VESX45-IP) for optimal safety and efficiency. Built with 304 Stainless Steel, these durable grounding clamps can be installed with both Bond-Rite® and Earth-Rite® monitoring systems. Newson Gales’ approved dual core medium heavy-duty static grounding clamps offer a positive contact with the equipment to be properly and safely grounded. Each Newson Gale clamp provides an interlock control and visual indication to verified ground connection points and offer the highest levels of protection over electrostatic ignition risks. Shop the JME site for the best selection of Newson Gale grounding clamps today.

Features

• Can be integrated into the Earth-Rite® and Bond-Rite® systems to ensure a true verified ground connection.
• Quick connect functionality in each clamp allows for easy removal from hazardous locations.
• Tungsten carbide material teeth can bite through built up paint deposits and other forms of build up for easy removal.
• Approved with the following certifications: FM, ATEX, IECEx, UKCA Ex

Specifications

• Clamp Material: 304 Stainless Steel
• Spring Material: 302 Stainless Steel, torsion spring
• Operating Temperature: -40°F to 140°F
• Clamp Teeth Material: Tungsten
• Maximum Jaw Opening: 0.6 in.
• Cable Diameter: 0.3 in.
• Product Dimensions: 4.7 in. x 2.6 in. x 1 in.
• Shipping Dimensions: 12 in. x 12 in. x 8 in.
• Shipping Weight: 1 lb.
• Applications: Grounding and bonding metal objects ranging from 55 gallon drums to large metal totes and IBCs.

Downloads

Specification Sheet (PDF Download)
