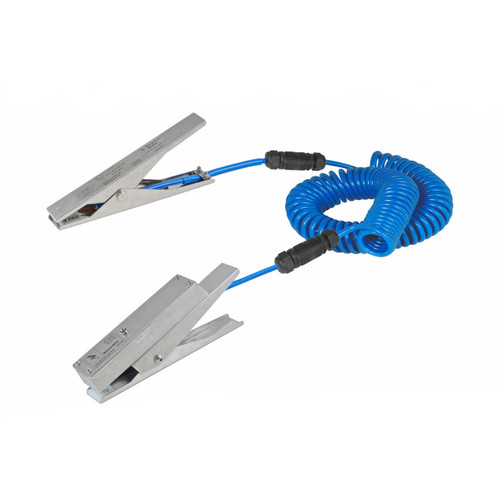

Newson Gale Bond-Rite EZ Self Testing Bond Clamp Assembly w/ 32 Ft Coiled Cable & X90-IP Heavy Duty Clamp

Self-testing bond clamp assembly with visual indication. The Bond-Rite EZ is a unique portable unit that bonds equipment engaged in liquid or powder transfers conducted in locations where installed earthing & bonding equipment is not provided.

The EZ comprises a Bond-Rite clamp with a flashing LED located in the clamp housing combined with the option of a heavy-duty or medium duty 2 pole clamp, plus a flexible range of cable length options to complete the assembly. The bright green LED pulses continuously when it detects the grounding circuit has a resistance of 10 ohms or less. Once connected, the Bond-Rite EZ continuously monitors the resistance of the circuit between the equipment.

Notice: Not recommended for grounding trucks!

Features

• Highly visible LED housed in grounding clamp ensures operators know when low resistance connection is achieved with potentially charged equipment.
• Tungsten carbide tips bite through product deposit build up, rust & drum coatings to ensure proper bonding connections are made.
• Stainless steel clamps designed to withstand use in tough chemical processing and industrial environments.
• Quick Connect provides personnel with the flexibility of removing the clamp from zoned / classified areas for battery replacement.
• 10 ohms loop resistance monitoring compliant with international Best Practice standards.

Specifications

• For use on drums and containers
• Ingress Protection IP 65 / NEMA 4X.
• Battery Supply (included): 9V Lithium Manganese ULTRALIFE U9VL-J
