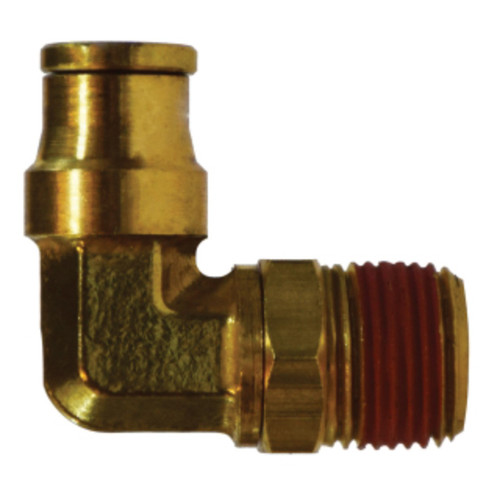

Midland Industries 691006S Brass D.O.T. Push-to-Connect 90° Swivel Elbow, 5/8 in. PTC x 3/8 in. MNPT

Midland Industries 691006S Brass D.O.T. Push-to-Connect 90° Swivel Elbow, 5/8 in. PTC x 3/8 in. MNPT Description

The Midland Industries 691006S Brass D.O.T. Push‑to‑Connect 90° Swivel Elbow is a durable, high‑performance fitting engineered for efficient directional changes in air brake and pneumatic systems. Constructed from corrosion‑resistant brass, this elbow delivers dependable strength and long‑term reliability under demanding operating conditions. The 5/8‑inch push‑to‑connect port allows quick, tool‑free tube insertion, while the 3/8‑inch male NPTF swivel connection ensures secure threading with the flexibility to reposition after installation. With a robust pressure rating of 150 psi and a wide operating temperature range, this fitting meets D.O.T. standards for transportation applications and performs effectively in industrial pneumatic systems requiring strong, vibration‑resistant connections.

Features

• Durable Brass Construction: Provides excellent corrosion resistance and long‑lasting reliability in air brake and pneumatic systems.
• Push‑to‑Connect Design: Allows rapid tube installation without tools for improved assembly efficiency.
• Swivel Male NPTF Connection: Enables precise post‑installation positioning for easier alignment and reduced stress on tubing.
• D.O.T.‑Rated Performance: Meets requirements for approved use in transportation and commercial pneumatic applications.

Specifications

• Connection Size: 5/8 in. x 3/8 in.
• Connection Type: Push‑to‑Connect x MPT Swivel
• Fitting Type: 90‑deg Elbow
• Hex Size: 11/16 in.
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 200 °F
• Thread Size: 3/8 - 18

Downloads

Product Literature (PDF Download)
