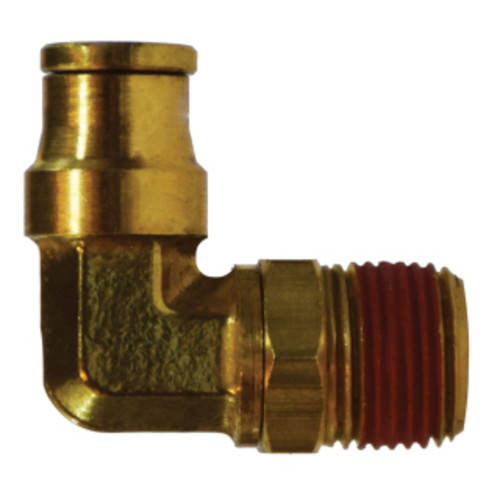

Midland Industries 690606S Brass D.O.T. Push-to-Connect 90° Swivel Elbow, 3/8 in. PTC x 3/8 in. MNPT

Midland Industries 690606S Brass D.O.T. Push-to-Connect 90° Swivel Elbow, 3/8 in. PTC x 3/8 in. MNPT Description

The Midland Industries 690606S Brass D.O.T. Push‑to‑Connect 90° Swivel Elbow is a durable and dependable fitting designed for pneumatic and transportation applications requiring secure, leak‑resistant flow control. Constructed from high‑quality brass and engineered to meet D.O.T. standards, this fitting ensures reliable performance under pressure. The push‑to‑connect design streamlines installation, while the 90‑degree configuration and swivel male NPTF threading enhance system layout flexibility. Suitable for air brake systems and industrial pneumatic lines, it maintains stability across a wide temperature range and offers long‑lasting durability.

Features

• Durable Brass Construction: Built from corrosion‑resistant brass for long‑term use.
• D.O.T.-Approved Design: Meets requirements for pneumatic and transportation applications.
• Easy Push‑to‑Connect Assembly: Enables fast and secure tubing installation without extra tools.
• 90° Elbow Configuration: Provides smooth directional changes while maintaining proper airflow.
• Swivel Male NPTF Connection: Allows easier alignment during installation.

Specifications

• Connection Size: 3/8 in. x 3/8 in.
• Connection Type: Push‑to‑Connect | Male NPTF Swivel
• Fitting Type: 90‑deg Elbow
• Hex Size: 11/16 in.
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 200 °F
• Thread Size: 3/8 - 18
