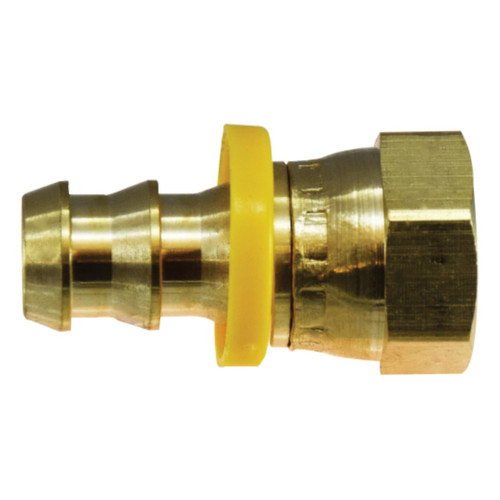

Midland Industries 30230 Brass Push On Swivel Adapter, 1/4 in. Push On x 1/4 in. Female 45°/37° Swivel

Midland Industries 30230 Brass Push On Swivel Adapter, 1/4 in. Push On x 1/4 in. Female 45°/37° Swivel Description

The Midland Industries 30230 Brass Push‑On Swivel Adapter is a versatile and durable fitting designed for secure connections in fluid transfer, hydraulic, and pneumatic applications. Featuring a 5/8‑inch push‑on hose barb and a 5/8‑inch female swivel compatible with both SAE 45‑degree and JIC 37‑degree flare fittings, this adapter provides exceptional flexibility in system design and component matching. Made from high‑quality brass, it offers strong corrosion resistance and long‑lasting performance, while the swivel end reduces hose stress during installation and operation. Its reliable sealing capability, compact profile, and compatibility with push‑on hose assemblies make it suitable for a wide range of industrial and commercial fluid handling systems.

Features

• Durable Brass Construction: Provides excellent corrosion resistance and long‑term reliability.
• Push‑On Hose Barb: Allows quick, secure hose installation without the need for clamps in many applications.
• Dual‑Standard Swivel End: Compatible with both SAE 45° and JIC 37° flare fittings for enhanced versatility.
• Stress‑Reducing Swivel Design: Helps prevent hose twisting and improves installation flexibility.
• Reliable Performance: Suitable for low‑ to medium‑pressure fluid transfer applications.

Specifications

• Connection Size: 5/8 in.
• Connection Type: Push‑On Hose Barbed | Female SAE 45‑deg / 37‑deg JIC Swivel
• Dimensions: 1.53 in. L
• Fitting Type: Adapter
• Hex Size: 0.56 in.
• Material: Brass
• Maximum Operating Pressure: 150 psi
• Thread Size: 7/16‑20

Downloads

Product Literature (PDF Download)
