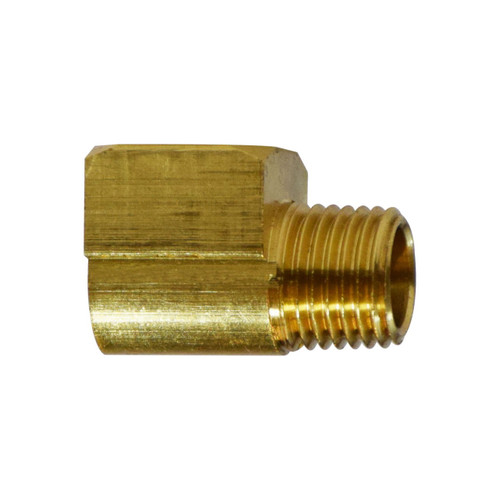

Midland Industries 28157S Brass 90° Barstock Short Pattern Street Elbow, 1/4 in. FNPT x 1/4 in. MNPT

Midland Industries 28157S Brass 90° Barstock Short Pattern Street Elbow, 1/4 in. FNPT x 1/4 in. MNPT Description

The Midland Industries 28157S Brass 90° Barstock Short Pattern Street Elbow is a precision‑machined fitting engineered for efficient directional changes in piping systems. Constructed from durable brass, this short pattern elbow features a 1/4‑inch female NPTF connection on one end and a 1/4‑inch male NPTF connection on the other, offering secure compatibility with aluminum, brass, bronze, copper, iron, and steel pipe. Its robust pressure and temperature ratings make it suitable for demanding applications including fuels, LP and natural gas, refrigeration, hydraulic systems, instrumentation, and grease lines. Designed to meet SAE, ASA, and ASME standards, this elbow delivers dependable performance across a wide range of industrial and commercial environments.

Application: Grease, Fuels, LP Gas, Natural Gas, Refrigeration, Instrumentation, Hydraulic Systems

Features

• Brass Construction: Durable brass body provides corrosion resistance and long service life.
• Short Pattern Street Design: Compact elbow structure supports installations where space is limited.
• Precision Machined: Barstock fabrication ensures consistent quality, strength, and reliable sealing.
• Versatile Application Range: Suitable for fuels, LP and natural gas, refrigeration, hydraulic systems, instrumentation, and grease systems.

Specifications

• Connection Size: 1/4 in.
• Connection Type: Female NPTF | Male NPTF
• Fabrication: Machined
• Fitting Type: 90° Elbow
• For Use With: Aluminum, Brass, Bronze, Copper, Iron, Steel Pipe
• Material: Brass
• Pressure Rating: 1200 psi
• Standard Approvals: SAE J530, SAE J531, ASA, ASME
• Temperature Rating: -65 to 250 °F
• Thread Size: 1/4 - 18
