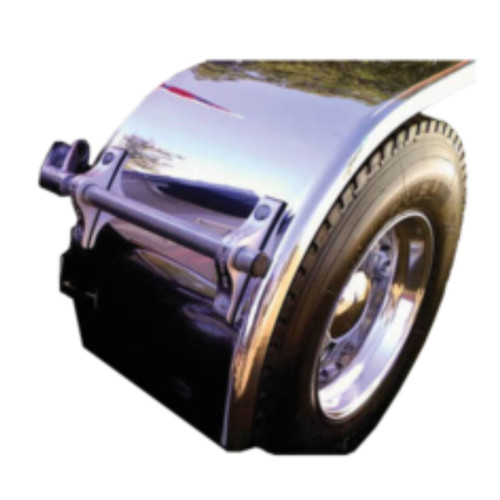

Merritt 5167-2 Lelox Heavy Duty Fender Bracket

Merritt 5167-2 Lelox Heavy Duty Fender Bracket

The Lelox Heavy Duty Fender Bracket is engineered to excel in the harshest environments, making it ideal for heavy-duty trucks. This versatile bracket can be adapted to various applications. It is light, very strong, and highly durable, ensuring long-lasting performance. Installation is straightforward with normal hand tools. Each Heavy Duty Fender Mounting kit can mount two quarter fenders or one single axle fender, and it can also be used to mount a full fender using an E-Z Mount adjustable center bracket.

Features

• Ideal for Heavy Duty Trucks: Thrives in harsh environments.
• Easy Installation: Normal hand tools are sufficient.
• Light and Durable: Strong construction ensures longevity.
• Comprehensive Mounting Kit: Includes 2 off-set tube mounts (steel tube and cast aluminum boss) and 4 cast aluminum mounting brackets.

Specifications

• Bolt Installation: 3/8 in. x 2-1/4 in. bolts, 10 inch lbs. torque.
• Cast Aluminum Brackets: Secure with a Grub Screw.
• Drilling Template: Use backing plate to drill holes.
• Offset Chassis Pipe Mounts: Attaches with a single grade 8 bolt.
• Offset Pipe Fender Bracket: Mounts outside any fender.
• Secure Mounting: Grub Screw and 3/8 in. conelok nut.
• TAB Lock-washers: Prevent bolt unwinding.
• Torque: 5/8 Nyloc nuts to 150 ft./lbs.
• Includes:
  • 2 mounting tubes
  • 4 cast, curved fender brackets
  • Mounting hardware

Installation Notes:

• Bend TAB Lock-washers downward into the bolt to prevent unwinding.
