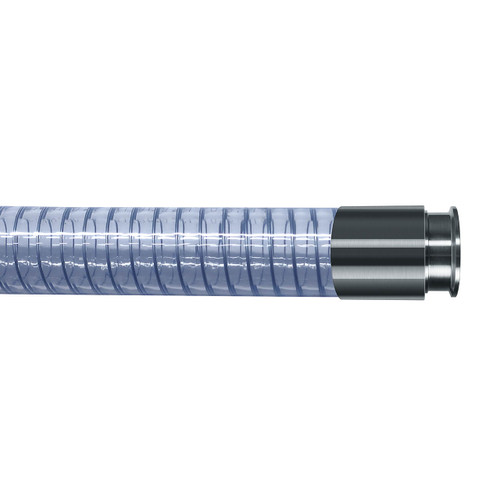

Kuriyama Polyspring Series K7160 1 in. Vacuum/Transfer Hose w/Tri-Clamp Ends

Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria. Reinforced with helically-wound spring steel wire this product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.

Service Temperature Range: 25ºF (-4ºC) to +150ºF (+65ºC)

Other available ends include: Bevel Seat, I-Line, Tube Weld, Quick Coupling, King Nipple & NPT.

Features

• Spiral wire reinforcement prevents kinking or collapsing
• Hose diameter will not expand under normal rated working pressures
• Crystal clear material allows visual confirmation of product flow
• Glass-smooth interior reduces material buildup
• Electro galvanized helical steel wire can be used for static dissipation
• Resistant to chemicals
• Self-extinguishing
• Non-marking
• Non-toxic
• Phthalate free
• Silicone-free
• One-piece lengths
• Phthalate free as of 4/10/15
• 1" Max. working pressure at 70ºF (20ºC): 70 PSI
• 1" Max. working pressure at 122ºF (50ºC): 35 PSI
• 1 1/2" & 2" Max. working pressure at 70ºF (20ºC): 50 PSI
• 1 1/2" & 2" Max. working pressure at 122ºF (50ºC): 30 PSI
• Min. bend radius: 4 in
• 29.9" HG vacuum rating

Applications

• Air and Water Supply Lines
• Air Breathing Lines
• Car Wash
• Coolant Lines
• Deionized Water Systems
• Food & Beverage Dispensing
• Full Vacuum Lines
• Grounding Wire
• Industrial Vacuum Pumps
• Liquid Food Products
• Pneumatic Parts Transfer
• Static Dissipative
