Description Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844. Pneumatic circuits for truck and trailers: air suspension, braking systems, transmissions, locking doors and windows, seat adjustment, instrumentation, air conditioning systems, horn, wiper motors, valves, cylinders and accessories. Suitable for all air assisted applications except those designed for use between frame and axle or between towed and towing vehicles. Specifications Brand: Kuriyama Tube OD: 1/4 in. Material: Bronze Max Pressure: 290 PSI Vacuum Rating : 29 inHg Temp Range: -58°(-50°C) to +212°F (+100°C) Seals: NBR Holding Ring: Resin (PEI) Gripping Collet: Stainless Steel AISI 301 Protection Ring: Resin (PEI) Pieces Per Package: 25 NPTF (D1)Tube IDD2L1L2L3HexWeight Each 1/8 in. 0.165 in. 0.472 in. 0.335 in. 0.906 in. 0.886 in. 1/2 in. 0.059 lbs 1/4 in. 0.165 in. 0.472 in. 0.512 in. 1.102 in. 0.886 in. 9/16 in. 0.072 lbs Downloads Specification Sheet (PDF Download)
Kuriyama Kuriyama Kuri Tec Endure DOT 1/2 in. OD x NPTF Male 45 Deg Swivel Elbow, Bronze MSRP: Was: Now: $18.27 - $19.40 Quick view Choose Options

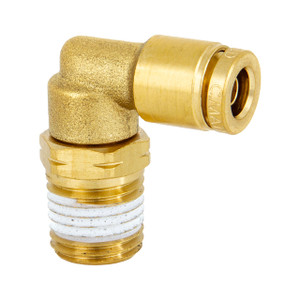

Kuriyama Kuriyama Kuri Tec Endure DOT 1/4 in. OD x NPTF Male 90 Deg Swivel Elbow, Bronze MSRP: Was: Now: $4.30 - $6.15 Quick view Choose Options

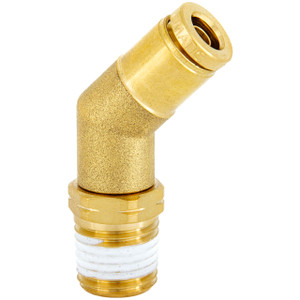

Kuriyama Kuriyama Kuri Tec Endure DOT 3/8 in. OD x NPTF Male 45 Deg Swivel Elbow, Bronze MSRP: Was: Now: $13.46 - $15.75 Quick view Choose Options
