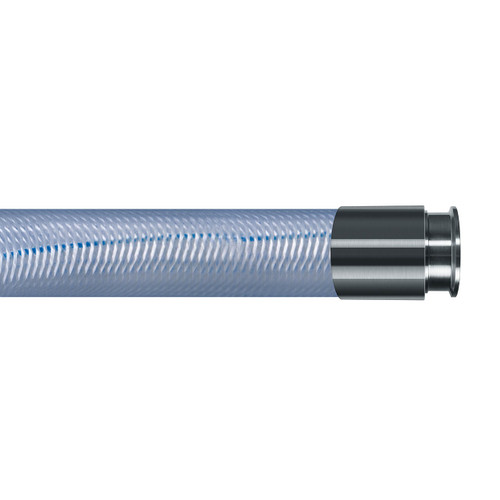

Kuriyama Clearbraid K3150 Series RF 1 1/2 in. Standard Wall PVC Hose w/Tri- Clamp Ends

Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA1 requirements, meets USDA2, 3A3 and NSF4 criteria and California Proposition 65. Reinforced with spiraled polyester yarn and multiple longitudinal polyester yarn (including orange yarns for identification) to reduce elongation under pressure.

Service Temperature Range: 25ºF (-4ºC) to 150ºF (65ºC)

Other available ends include: Bevel Seat, I-Line, Tube Weld, Quick Coupling, King Nipple & NPT. Please call for details.

Features

• Constructed with non-toxic compounds
• NSF-51 and NSF-61 certified material
• Crystal clear material allows visual confirmation of product flow
• Longitudinally-reinforced to reduce elongation under pressure
• Lightweight
• Self-extinguishing
• Non-marking
• Phthalate free
• Silicone-free
• Non-conductive
• One-piece lengths
• Resistant to chemicals
• Phthalate free as of 4/1/15
• 1 1/2" Max. Working Pressure at 70ºF (20ºC): 100 PSI
• 1 1/2" Max. Working Pressure at 122ºF (50ºC): 50 PSI
• 2" Max. Working Pressure at 70ºF (20ºC): 75 PSI
• 2" Max. Working Pressure at 122ºF (50ºC): 35 PSI
• Compound hardness 73 ±3 Shore "A"

Applications

• Food and beverage dispensing
• Deionized water
• Liquid food products
• Air and water lines
• Powered food products
• Potable water transfer
• Air breathing lines
• Pneumatic lines
• Packaging machines
