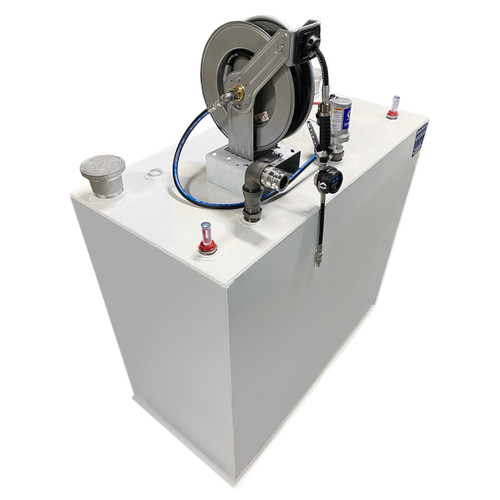

JME 500 Gallon Double Wall Tank w/ Graco 1/2 in. x 50 ft. Oil Hose Reel and Graco 3:1 Air Powered Piston Oil Pump - 7.8 GPM

JME 500 Gallon Double Wall Tank w/ Graco 1/2 in. x 50 ft. Oil Hose and Graco 3:1 Air Powered Piston Oil Pump 7.8 GPM Description

The JME 500 Gallon Double Wall Tank is the ultimate solution for clean, safe, and effective oil storage and dispensing. Built with UL 142 certification, this tank is ideal for industries requiring reliable storage solutions. Paired with a Graco LD Series 3:1 Air Powered Piston Oil Pump, a 50 ft. Graco LDX Hose Reel and optional Graco meters, this package is designed to streamline your fluid handling operations.

Applications: Automotive dealerships, Fast lube centers, Service shops, Lube trucks, Industrial manufacturing

Features

500 Gallon Double Wall Tank

• High Capacity: 500-gallon capacity ideal for used oil storage.
• Robust Construction: 12-gauge carbon steel with a 10-gauge common top for superior durability.
• Safety First: Includes emergency vents and a lockable fill box for secure operation.
• UL 142 Certified: Built to meet industry safety and design standards.

Graco LD Series 3:1 Air Powered Piston Oil Pump

• Powerful Performance: 7.8 GPM flow rate and 3:1 pump ratio for efficient oil transfer.
• Innovative Design: Modular air valve reduces icing and simplifies repairs.
• Durable Build: Patent-pending components extend pump life and reliability.

Graco LDX Series 50 ft. Oil Hose Reel

• Compact and Versatile: Dual pedestal design with six adjustable arm positions.
• Robust Construction: Spring-driven reel with a ball bearing swivel for smooth retraction.
• High Capacity: 50 ft. hose included for extended reach.

Specifications

Tank

• Capacity: 500 gallons
• Dimensions: 60 in. L x 55 in. W x 40 in. H
• Material: 12-gauge carbon steel
• Certification: UL 142

Pump

• Flow Rate: 7.8 GPM
• Air Inlet Size: 1/4 in.
• Maximum Working Pressure: 750 PSI
• Materials: Zinc-plated carbon steel, aluminum

Hose Reel

• Hose Length: 50 ft.
• Maximum Pressure: 1500 PSI
• Inlet & Outlet Size: 1/2 in. MNPT
• Temperature Range: -40°F to 212°F

Graco LDP5 Preset Dispense Meter

• Flow Rate: 5 GPM
• Accuracy: ±0.5%
• Durable LCD Display: Easy-to-read electronic meter for precise measurements.

Graco EM8 Electronic Manual Dispense Meter

• Flow Range: 0.25–8 GPM
• Robust Design: IP69K-rated for indoor and outdoor use.
• Operator Comfort: Ergonomic handle and locking trigger for ease of use.

Graco SDV15 Series Oil Control Valve

• Flow Rate: Up to 15 GPM
• Flexible Extension: Non-drip, quick-close valve for clean operation.

Contents

• 550 Double-Wall Tank
• Primary Emergency Vent - 4 in.
• Primary Gauge
• Primary Atmospheric Vent
• Secondary Leak Gauge
• Secondary Emergency Vent - 4 in.
• 3:1 Air Powered Piston Oil Pump
• 1/2 in. x 50 ft. Spring Driven Oil Hose Reel
• Reel Bracket
• Suction Tube
• 2" Male Camlock Adapter (Part F) Tank Fill Inlet
• Oil Hose from Pump to Reel
• Air Hose
• Air Filter/Regulator - 1/4 in.
• Preset Meter (option)
• Manual Meter (option)
• Valve Without Meter (option)
