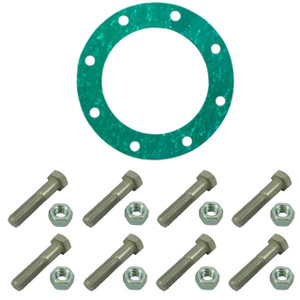

JME 1/16 in. Thick Fiber 150# Full Face Flange Gasket

JME 1/16 in. Thick Fiber 150# Full Face Flange Gasket

The JME 1/16 in. Thick Fiber 150# Full Face Flange Gasket is crafted from Klingersil® C-4401, a high-quality synthetic fiber known for its excellent sealability, chemical resistance, and creep relaxation. Designed for use with flat face flanges, this gasket ensures a reliable and durable seal in various industrial applications. With a maximum temperature tolerance of 750°F and a maximum working pressure of 1,450 PSI, it is ideal for demanding environments.

Features

• Material: Made from Klingersil® C-4401, a non-asbestos synthetic fiber.
• Sealability: Provides excellent sealability and chemical resistance.
• Durability: Offers superior creep relaxation for long-lasting performance.
• Compatibility: Suitable for use with flat face flanges.

Specifications

• Flange Type: 150#
• Material: Fiber
• Maximum Temperature: 750°F
• Maximum Working Pressure: 1,450 PSI
• Product Type: Full Face Flange Gasket
• Ring Thickness: 1/16 in.
• Size: 1/2 - 30 in.
• Thickness: 1/16 in.
• Type: 150#
