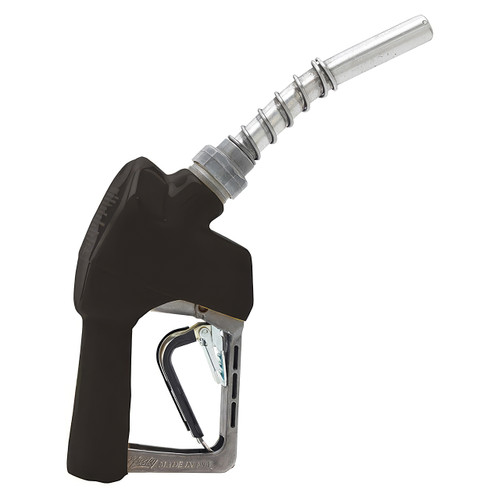

Husky 1GS 1 in. Heavy-Duty Automatic Diesel Farm Nozzle w/ Hold Open Clip, Black

Husky 1GS 1 in. Heavy-Duty Automatic Diesel Farm Nozzle w/ Hold Open Clip, Black Description

The 1 GS heavy duty nozzle with three notch open clip and polymer handguard is for use on the farm, with 12V skid tanks, large pumps(with or with out eliminators) and commercial applications.

The 1GS® diesel nozzle has a 1'' NPT Inlet and has pressure activated automatic shut-off with three notch hold open clip and polymer handle cover. The stainless steel spout bushing keeps the spout tip round and acts as a captive fastener to prevent tip-end sensor damage. Husky XS® nozzle shuts off when the pump shuts off, the gas tank is full, the lever is opened before the pump is turned on, or the leak detector has not completed its test cycle.

Features

• 1 GS® nozzle shuts off-When the pump shuts off, gas tank is full, lever is open before the pump is turned on and if the leak detector has not completed the test cycle
• Nozzle is equipped with Flo-Stop® device-The nozzle shuts off or if it falls from the fill neck or raises above the horizontal
• Stainless steel spout-Has a reinforced stainless steel bushing keeps the spout tip round and acts as a captive fastener to prevent tip-end sensor damage
• StreamShaper®-Helps reduce turbulence for straighter fuel flow and less splash back spillage
• ADA compliant EZ Lever-reduces the force required to open the main poppet valve by 50%, lever operating force less than 5 lbs.
• Not legal for retail dispensing applications
• Not for use with gravity tanks

Specifications

• Series: 1GS
• Automatic Shut Off
• Size: 1 in. NPT Inlet
• Color: Black
• Flow-Rate: 25.5 GPM
• Spout: 1 1/8 in. OD
• Spout Length: 7 1/4 in.
• Max. Operating pressure: 50 PSI
• Temperature range: -20°F to 140°F
• 3 Latch positions
• Includes: Hook and polymer handle cover
• Color: Black
• Body: One-piece die cast aluminum
• Seals: Fluorocarbon
• Packing: Double O-ring seal protected by fiber reinforced Teflon®
• Lever: One-piece polymer
• Chemical compatibility: Diesel
