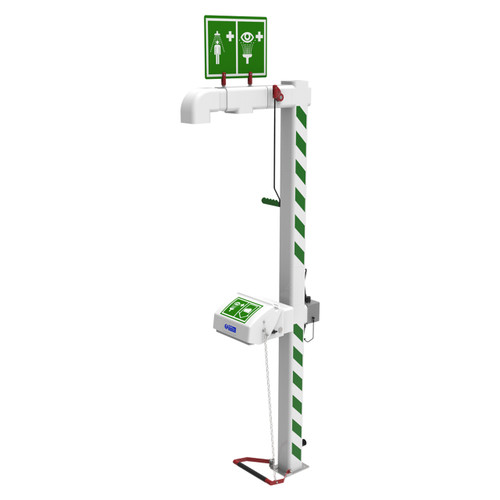

Hughes Safety HG45G-1H Freeze Protected Safety Shower w/ABS Closed Bowl Eyewash, 120V

The Hughes Safety H5G45G-1H is an outdoor emergency trace tape heated safety shower with ABS covered bowl eyewash. The shower and covered bowl eyewash is heat traced and insulated for frost protection and has galvanized piping. The unit has a floor mounted safety shower with eye/face wash designed for where there is the risk of water with in the pipework freezing in cold climates. Trace tape heating and insulation ensues workers exposed to hazardous substances can utilize the safety shower without the risk of malfunction due to freezing conditions. The shower provides 20 GPM continuous water flow, and the eyewash gives an aerated flow up to 3 GPM for gentle washing action. Pull handle activation for the safety shower and a lidded eyewash ensures the bowl and diffusers remain free of dust and debris.

Specifications

• Flow rate: Shower: 20 gallons (76 liters) & Eye wash 3 gallons (12 liters)
• Low level water inlet: 1 1/4 in. male NPT
• Pressure: 29 to 87 PSI (2 to 6 bar)
• Electrical Equipment: Class 1, DIV 2, GRPPS A, B, C & D
• Heating load: 57 Watts
• Electrical supply: 120V, 1Phase, 50/60 Hz
• Heating Type: Trace tape heated and insulated
• Heating load : 57 Watts
• Ambient operating temperature: -4°F to 95°F (-20°C to 35°C)
• Pipework & Fittings: Galvanized
• Operating valve: Stainless steel, full bore, stay open ball valve
• Shower nozzle: Injection molded nylon 6
• Eyewash: Acrylic capped
• Eyewash diffusers: Chrome plated rating ring, stainless steel mesh filter, plastic body
• Polyurethane foam insulation with a medium density polyethylene impact resistant outer casing
• Suitable for: Outdoors, Cold Climates and Hazardous Areas
• Standard color: White w/ Green
• Dimensions: 13.3 in. W x 34.8 in. D x 91.3 in. H (338 mm W x 885mm D x 2318 mm H)
• Weight: 55 lbs. (25 kg)
• Heat Tracing rated for CLASS 1 DIV 2 electrical areas.
• Meets ANSI Z358.1 2014 and EN 15154 standards, supports OSHA requirements
