Holmbury IB12-M-08N 1/2 in. Carbon Steel ISO B Coupling 1/2 NPTF, ISO 7241:2014 W/ Nitrile Rubber Seal - Male

Description

Holmbury's IB Series ISO B couplings are the ideal choice where a tough, durable product of superior quality is required. They are perfectly suited to agricultural and industrial applications

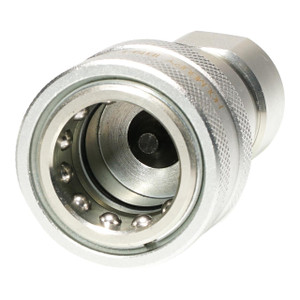

Note: Male and female couplings are sold separately.

Features

• Optional zinc nickel plating provides corrosion resistance (1200 hours with no red rust in salt spray tests)
• Poppet valves have balanced springs
• Locking ball system allows quick connection
• Bidirectional flow
• Carbon steel with trivalent plating (Zinc nickel plating available - for US request IBZ )
• Fitted with Nitrile seals (Viton seals available

Specifications

• Brand: Holmbury
• Series: IB Series
• Part Number:IB12-M-08N
• Body Size: 1/2 in.
• Body Material: Carbon steel W/ trivalent Plating
• Operating Temp: -40°C (-40°F) to 106°C (223°F)
• Seal material: NBR
• Flow-Rate: 12 GPM
• Flow-Rate: 45 LPM
• Thread Size: 1/2 NPTF
• Approvals/Certif: ISO 7241:2014
• Thread Type: NPTF
• Maximum working pressure (Coupled): 300 BAR
• Maximum working pressure (Coupled): 4350 PSI
• Burst pressure (Coupled): 1320 BAR
• Burst pressure (Coupled): 19140 PSI
• Burst pressure (Male *): 1350 BAR
• Burst pressure(Male *): 19575 PSI
• Burst pressure (Female **): 1400 BAR
• Burst pressure(Female **): 20300 PSI

Applications

• Agricultural
• Mobile
• Construction

Downloads

Specification Sheet (PDF Download)
