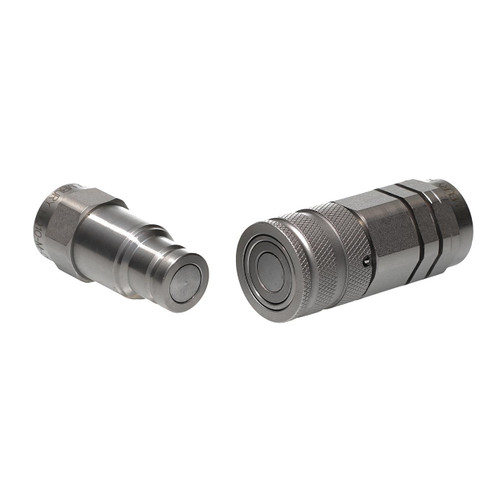

Holmbury HQ 1/2 in. Carbon Steel Flat Face Coupling 1 1/16-12 UN, ISO 16028 W/ Nitrile Rubber Seal

Description

Features

• Safety locking sleeve fitted as standard to prevent accidental disconnection
• Flat faces are easily wiped clean
• Minimal inclusion of air and contaminants during connection
• Flat face design prevents fluid loss during disconnection
• Bidirectional flow
• Operating temperatures (With NBR seals): -40°C (-40°F) to 106°C (223°F), (With FKM seals): -20°C (-4°F) to 200°C (392°F)
• Couplings have been tested to the ISO 18869 Standard

Specifications

• Brand: Holmbury
• Series: HQ Series
• Body Size: 1/2 in.
• Body Material: Carbon steel W/ zinc nickel plating
• Operating Temp: -40°C (-40°F) to 106°C (223°F),
• Seal material: NBR
• Flow-Rate: 12 GPM
• Flow-Rate: 45 LPM
• Thread Size: 1 1/16-12 UN
• Approvals/Certif: ISO 16028
• Thread Type: UN
• Maximum working pressure (Coupled): 350 BAR
• Maximum working pressure (Coupled): 5075 PSI
• Burst pressure (Coupled): 1400 BAR
• Burst pressure (Coupled): 20300 PSI
• Burst pressure (Male *): 1300 BAR
• Burst pressure (Male *): 18850 PSI
• Burst pressure (Female **): 1000 BAR
• Burst pressure (Female **): 14500 PSI

Applications

• Designed for use in pressure washer systems and systems containing non-hazardous fluids
• Carpet cleaners
• Steam washers
• Coolant lines
• Any non valved application

Downloads

Specification Sheet (PDF Download)
