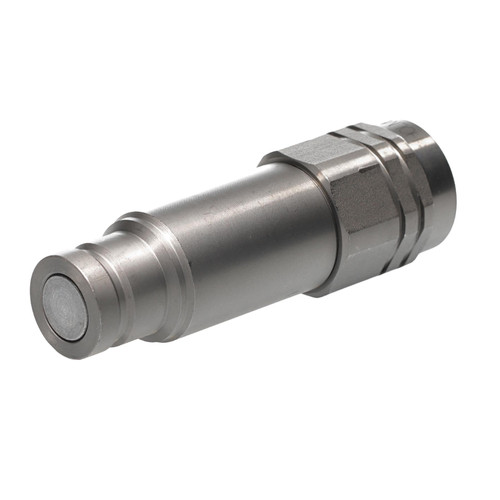

Holmbury HCP12-M-12S 1/2 in. Carbon Steel Coupling 1 1/16-12 UN, ISO 16028 W/ Nitrile Rubber Seal

Description

Holmbury's HCP Series couplings are designed to connect under pressure by hand with up to 350 bar (5075 psi) locked in the male half, making it an ideal choice for applications where the ability to connect under pressure is essential. The HCP Series also benefits from all the key features of the HQ Series flat face couplings.

Features

• Designed to connect with the HQ Series
• Flat faces are easily wiped clean
• Allows for minimal inclusion of air and contaminants during connection
• Flat face design prevents fluid loss during disconnection
• Bidirectional flow
• Connect under pressure with up to 350 bar (5075 psi) locked in the male half
• Female or male of HQ Series must have zero pressure when connecting to HCP range when under pressure
• Operating temperatures (With NBR seals): -40°C (-40°F) to 106°C (223°F)
• Dust caps are available for the HCP Series
• Carbon steel with zinc nickel plating (1200 hours with no red rust in salt spray tests)
• Fitted with NBR seals

Specifications

• Brand: Holmbury
• Series: HCP Series
• Body Size: 1/2 in.
• Body Material: Carbon steel W/ zinc nickel plating
• Operating Temp: -40°C (-40°F) to 106°C (223°F)
• Seal material: NBR
• Flow-Rate: 12 GPM
• Flow-Rate: 45 LPM
• Male/Female: Male
• Thread Size: 1 1/16-12 UN
• Approvals/Certif: ISO 16028
• Thread Type: UN
• Maximum working pressure (Coupled): 350 BAR
• Maximum working pressure (Coupled): 5075 PSI
• Burst pressure (Coupled): 1500 BAR
• Burst pressure (Coupled): 17400 PSI
• Burst pressure (Male *): 1400 BAR
• Burst pressure(Male *): 20300 PSI

Applications

• High pressure pulse applications
• Leak free environments
• Construction plant
• Mobile equipment
• General industrial
• Agricultural
• Skid steer loaders

Downloads

Specification Sheet (PDF Download)
