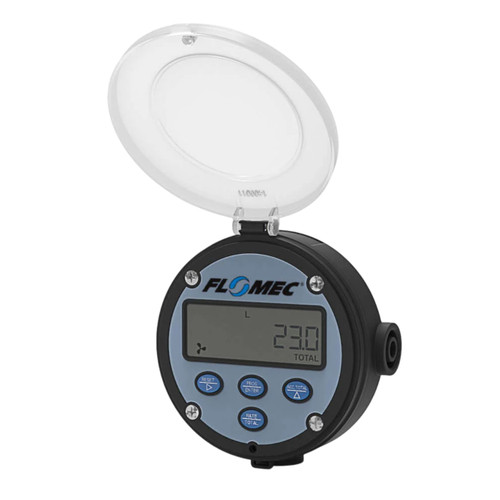

GPI RT142D0MM-I 1/2 in. FNPT FLOMEC RT14 Intrinsically Safe Multiple Output Flow Rate Totalizer

GPI RT142D0MM-I 1/2 in. FNPT FLOMEC RT14 Intrinsically Safe Multiple Output Flow Rate Totalizer

The FLOMEC® LCD display RT14 is a fully programmable, self-powered flow rate totalizer specifically designed for computing and displaying flow rates and totals from flow meters with pulse, sine wave, or frequency outputs. The instrument displays resettable (batch) total, accumulated total, and instantaneous flow rates in engineering units as programmed by the user. It is suitable for use with most pulse/frequency output meters such as reed switch, coil, voltage pulse (Wiegand), NPN, and PNP.

Features

• Robust IP66/67-NEMA4X Universal Mount Enclosure: Glass-reinforced nylon with rubberized buttons and polycarbonate lens
• Large Selection of Engineering Units: For flow rate and total. Ten point linearisation
• 4-20mA Analog Output: According to flow rate. Scaled pulse output according to accumulated total
• Flow Alarm: For high, low, or high/low
• Non-Volatile Memory: Long battery life
• Flowmeter and Pipe Mount Kits Available: See the RT14 Accessories collection

Specifications

• Electrical Access: 1/2 in. FNPT
• Housing Type: GRN Integral Meter Mount
• Operating Temperature: -22° F to 176° F (-30° C to 80° C)
• Mounting Type/Thread: Meter and stem mount, Wall, Pipe, or Panel mount
• Warranty: 2-yr
• Approvals: Intrinsically Safe - IECEx / ATEX (optional)

Downloads

Product Manual (PDF Download)

Specifications Sheet (PDF Download)
