GPI A1POXXN025NC2 1 in. NPT Commercial Nylon Paddlewheel Flow Meter for Water and Non-Aggressive Chemicals - Low Flow

GPI A1POXXN025NC2 1 in. NPT Commercial Nylon Paddlewheel Flow Meter for Water and Non-Aggressive Chemicals - Low Flow

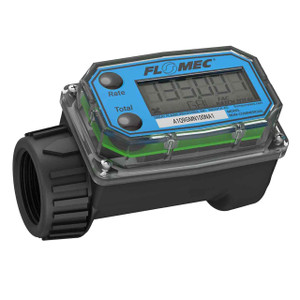

The FLOMEC® A1 Series Paddlewheel Flow Meter is designed for low flow applications involving water and mild chemicals. With a durable nylon body, this meter is perfect for non-aggressive chemical applications. It features a conditioned signal output module (blind) and is recommended for use with liquids such as water and mild chemicals. The meter operates within a flow range of 0.3 - 3 GPM (1 to 11 L/min) and offers an accuracy that can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for optimal accuracy.

Applications: Water, Mild Chemicals

Features

• Lightweight, Compact Design: Allows for easy installation
• NPN Open Collector Pulse: Communicates with most process control devices
• Modular Design: Compatible with output modules, sensors, and remote display kits; plug and play
• External Power Supply: Operates on 9 to 35 V (dc), approximately 1mA
• 10 ft. (3 m) 3-Wire with Strain Relief: Ensures secure connections
• Factory Calibration: Provides reliable performance out of the box

Specifications

• Size: 1 in. NPT (Female)
• Flow Range: 0.3 - 3 GPM (1 to 11 L/min)
• Accuracy: Application Dependent
• Technology: Paddlewheel
• Pressure Rating: 150 PSI (10.34 bar)
• Operating Temperature: 0° F to 140° F (-18° C to 60° C)
• Housing Material: Nylon
• Wetted Materials: 316 Stainless Steel, Ceramic, Nylon, Tungsten Carbide
• Warranty: 2 Years
• Approvals: CE, IP65, NEMA 4, RoHS

Accuracy can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for best accuracy.
