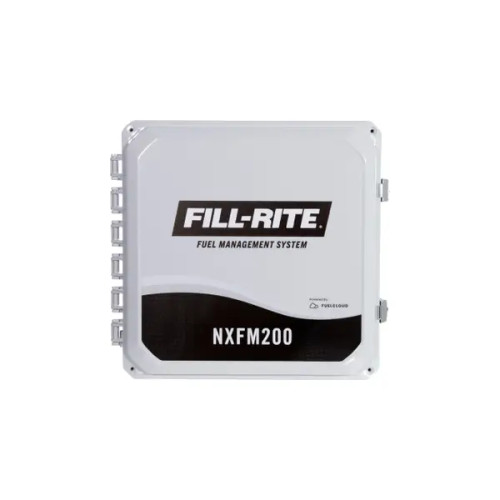

Fill-Rite NXFM200 Dual Hose Fuel Management System (FMS) Site Controller

The Fill-Rite NXFM200 Fuel Management Site Controller is a powerful, two-hose solution designed to help businesses streamline fuel tracking, prevent loss, and optimize efficiency. Featuring a weatherproof, lockable enclosure, dual ethernet ports, and an improved external antenna, it ensures reliable operation in demanding environments.

With real-time monitoring, unlimited reporting, and full control over driver and vehicle fuel usage, the NXFM200 integrates seamlessly with the Fill-Rite FMS platform for secure, data-driven fuel management. Enjoy flexible subscription pricing with no long-term contracts—adjust your plan based on your business needs.

Note: A Web Portal software subscription is required for this system.

Features

• Secure: Protect your fuel with driver-specific pin codes and robust tracking tools to identify and stop fraud and theft
• Affordable: Automate tax refunds for off-road fuel use, all while paying a fraction of the cost of legacy fuel management systems with comparable features
• Simple: Install in a day and take control with the intuitive app and web portal
• Accessible: All transaction data is uploaded to Fill-Rite FMS's web portal - saving you the hassle of tracking down hand written transaction sheets
• Low Cost: The NXFM200 is a fraction of the price of existing fuel management systems
• Versatile: Designed for both fixed and mobile applications
• Customizable: Easily customize and automate reports
• Expandable: Simply add modules to scale with your business - each module supports unlimited drivers, vehicles, transactions, and users
• Web-Based: Access information from anywhere at any time - works with Android and iOS devices - With the subscription-based service, updates and improvements happen automatically on a regular basis and you never have to pay extra for them

Specifications

• Power Requirements:
• 85-305VAC, 50/60Hz, 207W
• 8-50VDC - Requires a Class 2 power source
• Pump Control Ratings:
• 1HP 125VAC
• 2HP 240VAC
• 125VAC 16A General Purpose
• 240VAC 30A General Purpose
• 8-50VDC 40FLA/90LRA
• 8-50VDC 40A General Purpose
• Pulser:
• Power supply: 12VDC, 100mA
• Rate: 1:1 to 10,000:1
• Speed: 120,000 pulses per minute (2000Hz)
• Duty cycle: 50%
• Contact: (example: reed switch, contact close)
• Open collector: (wiring example: 12VDC, signal, ground)
• Temperature Rating:
• -4 F to 122 F (-20 C to 50 C) UL Installations
• Weather Rating: NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X. 5, 12, 13

Subscription Fee

A Web Portal software subscription of $85 per month is required for this system. The $85 per month is required for each site controller (NXFM200). Each additional Site Controller (NXFM200) requires an additional $85 per month subscription. A JME salesperson will be contacting you to discuss the subscription.

Downloads

Fill-Rite Fuel Management System Owners Manual (PDF Download)
