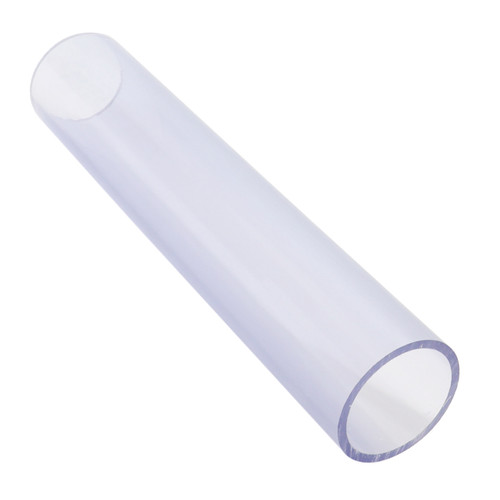

Excelon RPVC 1.029 in. Rigid PVC Tubing, Clear - 8 ft., 1.315 in. OD

Description

Excelon RPVC 1.029 in. Rigid PVC Tubing, Clear - 8 ft., 1.315 in. OD

Excelon® R-4000 Schedule 40 pipe and R-8000 Schedule 80 pipe are both clear and impact resistant superior PVC. Manufactured by low stress extrusion, these pipes offer unique physical properties to improve system integrity, help maintain both safety and environmental regulatory standards, provide visual monitoring, and keep production rates up.

Pipe and fittings can be joined together in simple steps using cleaner, primer, and cement. Adapter fittings can be used to incorporate Excelon® R-4000 or R-8000 into your existing systems of other polymers or metals.

All R-4000 (except 6") and R-8000 pipes and fittings are manufactured in IPS (Iron Pipe Sizes) to Schedule 40 and 80 dimensions. Please note that the pressure rating of thermoplastic pipe is conditional with the pipe diameter as well as the systems operating temperature. The pressure rating of the system decreases as the temperature rises. Smaller diameter pipe will withstand higher pressures than larger diameter pipe at increased temperatures.

Features

• Superior corrosion resistance
• Extensive range of chemical resistance
• Non-contaminating
• Smooth surface for unrestricted flow
• Lower sediment accumulation
• Non-conductive 6Strong pressure-bearing capability 6Fast and reliable solvent-welded fittings
• Ease of handling and installation

Specifications

• Brand: Excelon
• Series: RPVC
• Part Number: 4305G
• Length: 8 ft.
• I.D.: 1.029 in.
• O.D.: 1.315 in.
• Wall Thickness: 0.143 in.
• Color: Clear
• Material: Rigid PVC
• ID Tolerance: +/-.020 in.
• Wall Tolerance: +/-.010 in.
• LG Tolerance: +.375 in.-0
• Specific Gravity: 1.30 (+/-0.02)
• Tensile Strength: 5900 PSI
• MAX WP PSI: 220
• Certifications / Approvals: REACH, RoHS, FDA
