Emco Wheaton E2313-4CVUR60N 60 in. A-Frame Loading Arm Swivel

Emco Wheaton E2313-4CVUR60N 60 in. A-Frame Loading Arm Swivel

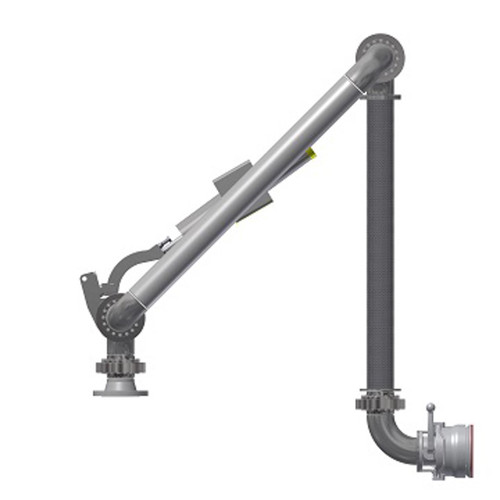

The Emco Wheaton E2313-4CVUR60N A-Frame Bottom Loader is engineered for efficient truck bottom loading applications, offering superior flexibility and performance. Designed to service both sides of the platform and accommodate adjacent arm crossover, this loading arm provides a compact parking profile with a high-angle storage position. Featuring D2000 World Series swivel joints for ultra-low maintenance and an easy-to-adjust spring cylinder balance, it ensures smooth operation and durability. Ideal for handling gasoline, diesel, LPG, and other high-pressure liquids and gases, this arm combines long reach capability with robust construction for demanding environments.

Features

• Versatile Loading Design: Supports truck and rail loading/unloading with rigid pipe or hose options.
• Compact Parking Profile: Stores in a near-vertical position for space-saving convenience.
• Durable Swivel Technology: Equipped with D2000 World Series swivel joints for minimal maintenance.
• Adjustable Balance System: Spring cylinder balance for easy handling and precise control.
• High-Pressure Capability: Rated for pressures up to 580 psi (40 bar) for demanding applications.

Specifications

• Balancing Method: Spring Cylinder
• Design Pressure: 150 PSI typical
• Design Temperature: 5°F to 140°F typical
• EW US Part Number: E2313
• Material of Arm Construction: Carbon Steel, Low Temp Carbon Steel, Stainless Steel
• Material of Optional Accessories: Aluminum, Composite, SST
• Maximum vertical range of movement: Up to 95° with spring cylinders
• Pipe Size: 4 in.
• Pressure: Up to 580 PSI
• ROM: +80° to +45°
• Size: 60 in.
• Standard vertical range of motion: 55° (park position) to -20° (load position)
