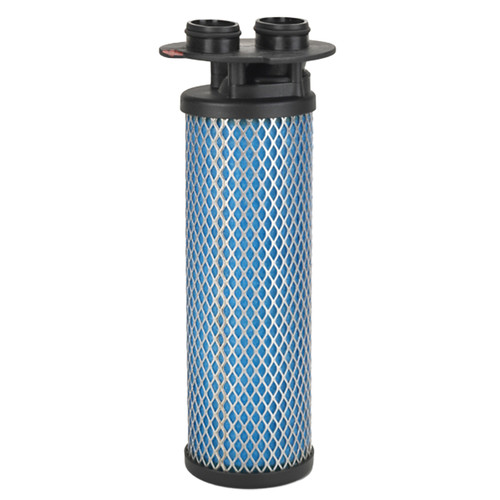

Donaldson M 1C486161 Ultrapleat Coalescing Filter Element, 0600, .01 Micron

Donaldson's ultra-effective M Series of coalescence filters / particle filters are top-notch filter elements, built with UltraPeat™ technology, remove oil aerosols, water and solid particles from the compressed air and gas filters. The M Series filters are inteded best for the industrial industry applications. The filter elements are equipped with the innovative filtration technology UltraPleat™ - a pleated high performance filter media to achieve high retention rates at lowest differential pressure. Shop the JME site for the best selection of M Series filter elements by Donaldson.

Features

• Donaldson M elements are used in our DF compressed air housing.
• Flow-optimized design minimizes pressure loss for economic compressed air purification, which allows for saving of energy costs.
• Innovative UltraPleat™ technology, pleated high performance filter media with special coating (oleophobic / hydrophobic) – Reliable achievement of high retention rates with low differential pressure.
• Use of stainless steel material in combination with glass fiber reinforced polyamide, allowing for optimal corrosion protection.
• Ability to change the position of the coding clip in the filter bowl for coalescence filter or particle filter allows for convenience of easily changing the flow direction.
• Pleated filter media has high dirt retention capacity by enlarged filter surface with lowest pressure loss.
• Coalescence sleeve fixed by outside liner has the flow area between element and housing guaranteed long term and at any time.
• Applications: Central compressed air processing, downstream applications, automotive industry

Specifications

• Connection Type: DF Connection
• Diameter: 12.05 in.
• Efficiency: 0.01 micron
• Element O-Ring Material: FKM
• End Cap Material: Fiberglass Reinforced Polymer
• Product Length: 5.16 in.
• Maximum Operating Temperature: 149°F
• Media Type: Borosilicate
• Inner Core Material: 1.4301 / 304 Stainless Steel
• Outer Core Material: 1.4301 / 304 Stainless Steel
• Oil Aerosol Retention Rate (ISO 12500-1): 99.4%
• Shipping Dimensions: 14.17 in. x 5.51 in. x 5.51 in.
• Shipping Weight: 1.65 lbs.
