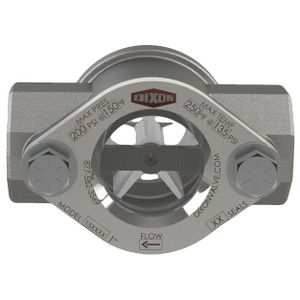

Dixon Series 15 Sight Flow Indicator 3/4 in. #150 TTMA Flange FKM Seal Ryton Propeller

Dixon Series 15 Sight Flow Indicator 3/4 in. #150 TTMA Flange FKM Seal Ryton Propeller

SKU:
DXDB15SS1RF007VI
Manufacturer:
Dixon
Size:
3/4 in.
Connection Type:
#150 TTMA Flange
Indicator Style:
Propeller
Material:
Stainless Steel
Indicator Material:
Ryton
Seal-Material:
FKM
Product Type:
Series 15
Weight:
0.00 LBS
$815.38
Adding to cart… The item has been added

Description

Dixon engineered industrial sight flow indicators are designed for fluid processes. These indicators are used to view the material flow direction, color, and clarity. Various sizes, indicator types, and seals are available to cover many typical industrial fluid applications.

Constructed from 316 Stainless Steel, Dixon 15 Series sight flow indicators feature FKM seals.

Features

  • Reliable O-ring lens seal
  • Maintenance-free design
  • Easy to install
  • Propeller indicator: Standard, unidirectional flow

    • Applications:

  • Water
  • Air
  • Petroleum Products
  • Chemicals & Solvents

Specifications

  • Part Number: DB15SS1RF-007VI
  • Indicator: Ryton Propeller
  • Size: 3/4 in.
  • Material: 316 Stainless Steel
  • Seal: FKM
  • Temperature Range: -20°F to 400°F
  • Length: 4.7 in.
  • Flange Diameter: 3.9 in.
  • (# Bolts) Bolt Hole Size: (4) 0.6 in.
  • Sight Opening Diameter: 1.5 in.
  • Raised Face Diameter: 1.7 in.
  • Flange Thickness: 0.5 in.
  • Pressure Rating: 400 PSI @ 150°F
