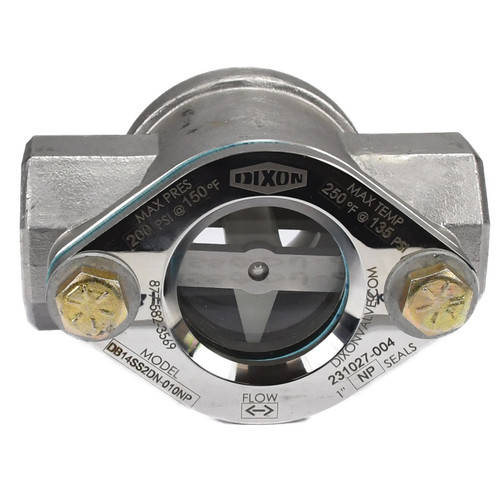

Dixon Series 14 Sight Flow Indicator 3/4 in. #150 TTMA Flange Neoprene Seal Delrin Flapper

Dixon Series 14 Sight Flow Indicator 3/4 in. #150 TTMA Flange Neoprene Seal Delrin Flapper

SKU:
DXDB14SS2DF007NP
Manufacturer:
Dixon
Size:
3/4 in.
Connection Type:
#150 TTMA Flange
Indicator Style:
Flapper
Material:
Stainless Steel
Indicator Material:
Delrin
Seal-Material:
Neoprene
Product Type:
Series 14
Weight:
0.00 LBS
$747.95
Adding to cart… The item has been added

Description

Dixon engineered industrial sight flow indicators are designed for fluid processes. These indicators are used to view the material flow direction, color, and clarity. Various sizes, indicator types, and seals are available to cover many typical industrial fluid applications.

Constructed from 316 Stainless Steel, Dixon 14 Series sight flow indicators feature Neoprene seals.

Features

  • Reliable O-ring lens seal
  • Maintenance-free design
  • Easy to install
  • Flapper indicator: Bi-directional, shows direction of flow

    • Applications:

  • Water
  • Petroleum Products
  • Chemicals & Solvents

Specifications

  • Part Number: DB14SS2DF-007NP
  • Indicator: Delrin Flapper
  • Size: 3/4 in.
  • Material: 316 Stainless Steel
  • Seal: Neoprene
  • Temperature Range: -20°F to 250°F
  • Length: 4.7 in.
  • Flange Diameter: 3.9 in.
  • (# Bolts) Bolt Hole Size: (4) 0.6 in.
  • Sight Opening Diameter: 1.5 in.
  • Raised Face Diameter: 1.7 in.
  • Flange Thickness: 0.5 in.
  • Pressure Rating: 200 PSI @ 150°F
