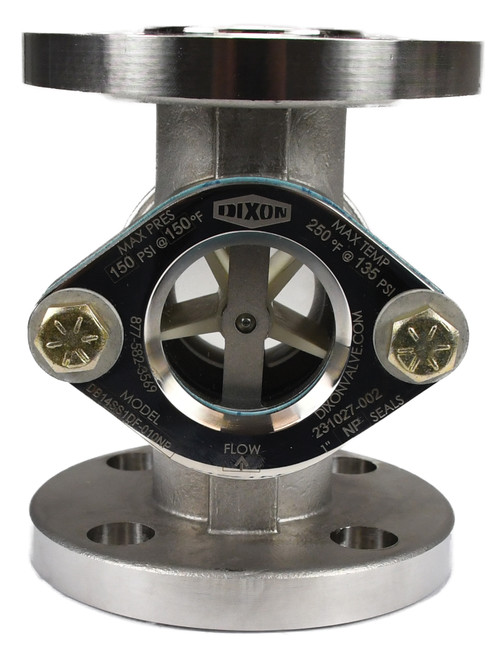

Dixon Series 14 Sight Flow Indicator 2 in. #150 TTMA Flange Neoprene Seal Delrin Propeller

Dixon Series 14 Sight Flow Indicator 2 in. #150 TTMA Flange Neoprene Seal Delrin Propeller

SKU:
DXDB14SS1DF020NP
Manufacturer:
Dixon
Size:
2 in.
Connection Type:
#150 TTMA Flange
Indicator Style:
Propeller
Material:
Stainless Steel
Indicator Material:
Delrin
Seal-Material:
Neoprene
Product Type:
Series 14
Weight:
0.00 LBS
$986.65
Adding to cart… The item has been added

Description

Dixon engineered industrial sight flow indicators are designed for fluid processes. These indicators are used to view the material flow direction, color, and clarity. Various sizes, indicator types, and seals are available to cover many typical industrial fluid applications.

Constructed from 316 Stainless Steel, Dixon 14 Series sight flow indicators feature Neoprene seals.

Features

  • Reliable O-ring lens seal
  • Maintenance-free design
  • Easy to install
  • Propeller indicator: Standard, unidirectional flow

    • Applications:

  • Water
  • Air
  • Petroleum Products
  • Chemicals & Solvents

Specifications

  • Part Number: DB14SS1DF-020NP
  • Indicator: Delrin Propeller
  • Size: 2 in.
  • Material: 316 Stainless Steel
  • Seal: Neoprene
  • Temperature Range: -20°F to 250°F
  • Length: 6.6 in.
  • Flange Diameter: 6.0 in.
  • (# Bolts) Bolt Hole Size: (4) 0.7 in.
  • Sight Opening Diameter: 2.0 in.
  • Raised Face Diameter: 3.6 in.
  • Flange Thickness: 0.8 in.
  • Pressure Rating: 200 PSI @ 150°F
