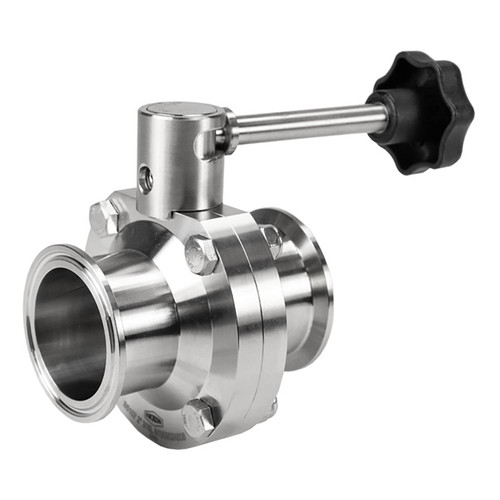

Dixon B5107 Series 4 in. 316L Stainless Steel Infinite Position Handle Sanitary Butterfly Valve, Silicone Seal, Clamp End

Dixon's B5107 Series Infinite Position Handle Sanitary Butterfly Valves are constructed from 316L stainless steel and have silicone seals. The infinite handle has incremental marks on the top which can be used when needing a throttling valve.

Connection: Clamp Ends

Features

• 316L SS Construction (Ra ≤ 32 Finish)
• Infinite Position Handle
• Silicone Seal
• Clamp Connection

Specifications

• Series: B5107
• Model: B5107S400CC-B
• Type: Infinite Position Handle
• Size: 4 in.
• Valve Stem Size: 10 mm.
• Connection: Clamp
• Material of Construction: Steel Components
• Product Contact Components (Body & Disc): Forged 316L
• Non-Product Contact Components : 304
• Surface Finish: Ra ≤ 32
• Seal Material for Product Contact Components: Silicone
• Non-Product Contact Components (Bushings): Polyacetal
• Flow Coefficient: 800 Cv - Based on Water at 68°F
• Valve Break Torque: 266 in.-lbs. - Based on Water at 68°F
• Maximum Product Line Pressure: 85 PSI
• Minimum Product Line Pressure: 0.4in Hg vacuum at 68°F
• Operating Temperature Range: 15 to 200°F (-9 to 93°C)

Product Notes

This Made-to-Order (MTO) item is non-returnable/non-refundable/non-cancellable unless there is a manufacturer defect or warranty issue.

Downloads

B5107 Series Drawing (PDF Download)

B5107 Series Technical Specifications (PDF Download)
