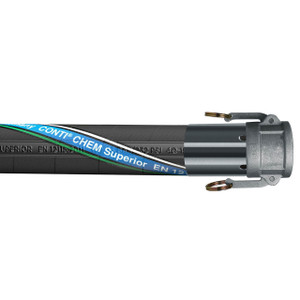

Continental ContiTech Chem Superior FEP 1 in. Chemical Transfer Hose w/ Female Coupler Ends

The Conti® Chem Superior FEP hose is a high-performance chemical transfer hose designed for demanding applications. It features a seamless, transparent FEP (Fluorinated Ethylene Propylene) lining, providing exceptional chemical resistance to a wide range of aggressive substances. This makes it ideal for handling corrosive chemicals, acids, and solvents in industries like chemical processing, pharmaceutical manufacturing, and laboratory settings.

The hose's construction includes a black, abrasion and flame-resistant EPDM cover and braided synthetic fiber reinforcement for durability and flexibility. It meets European standards (EN 12115:2011) and is suitable for both suction and delivery applications. With a temperature range of -22°F to 212°F, the Conti® Chem Superior FEP hose offers reliable performance in various operating conditions.

Features

• Seamless FEP lining provides exceptional chemical resistance to a wide range of aggressive chemicals, acids, and solvents.
• Operates reliably in temperatures ranging from -22°F to 212°F.
• EPDM cover and braided synthetic fiber reinforcement offer excellent abrasion and flame resistance
• Ideal for industries like chemical processing, pharmaceutical manufacturing, and laboratory settings.
• Meets EN 12115:2011 standards, guaranteeing quality and safety.

Specifications

• Inner Diameter: 1 in. (25.40 mm)
• Outer Diameter: 1.44 in. (37 mm)
• Weight (per ft.): 0.67 lbs (1 kg)
• Working Pressure: 232 PSI (1.60 MPa)
• Bend Radius: 4 in.
• Vacuum: 29 HG (737 mm)
• Design Factor: 4:1
• Temperature Range: -22°F to 212°F (-30°C to 100°C)
• Construction (Tube): Seamless, transparent, smooth bore, electrically non-conductive, FEP
• Construction (Cover): Black, abrasion and flame resistant, EPDM (fabric impression)
• Reinforcement: Braided synthetic fibers with 2 embedded Cu-wires and 1 galvanized helix
