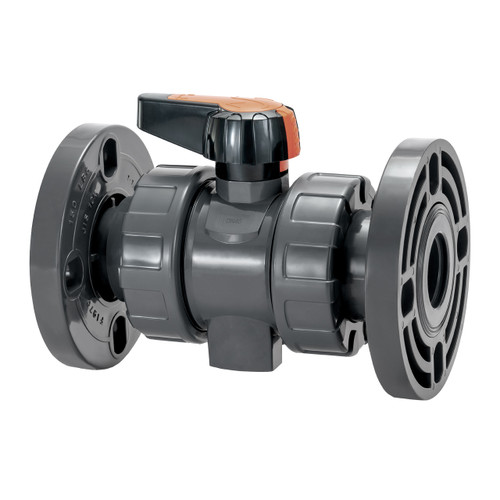

Chemline Plastics Type 25 True Union PVC Ball Valve w/ Locking Handle, EPDM Seals, Flanged Ends

Chemline Plastics Type 25 is a engineered rugged design true union ball valve for industrial applications. Based on the ball valve material covers a wide range of chemicals and application processes. Comes standard with a manual locking handle tin closed or open position with thumb lock. The ball valve is fully blocking, downstream union nut may be safely disassembled for pipe maintenance while valve is closed off under full pressure.

Features

• Double stem O-rings provide for a high degree of safety on hazardous fluid applications
• Compact ISO short body length is pace saving
• Ergonomic handle is easy to operate and can indicate flow direction
• All valves undergo a factory hydrostatic pressure test to assure quality
• Easy to actuate with optional electric or pneumatic actuation is available using ISO standard mounting kits. Contact a JME Sales specialist for details at 800-333-3331

Specifications

• ANSI Class 150 Flanged end connections
• Full port
• Blow-out proof stems
• Working pressure: 230 PSI
• PVC Body and shaft
• PTFE ball seats
• EPDM seals
• Temperature rating: Up to 140°F (60° C )

Downloads

Specification Sheet (PDF Download)

Chemical Compatibility Chart (PDF Download)
