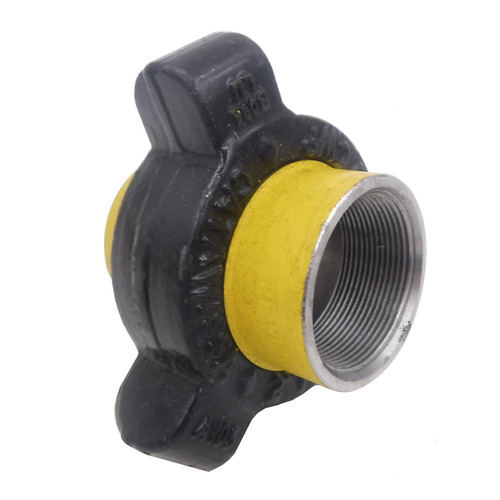

Catawissa 6 in. Fig 100 Steel Hammer Union

The Catawissa Fig 100 6 in. Hammer Union is a robust, low-pressure forged steel connection designed for use in air, water, oil, and gas service lines. Built for strength and durability, it features precision-machined metal-to-metal sealing surfaces that provide a tight, leak-free seal without gaskets. Rated for 1,000 PSI working pressure and 1,500 PSI test pressure, this union ensures reliable performance in pipeline and manifold systems. Its 6 in. NPT female threaded ends make installation quick and secure, reducing downtime in the field.

Features

• Heavy-duty forged steel construction provides long service life and excellent resistance to impact and wear.
• 6 in. NPT female threaded ends allow for fast, secure installation and easy maintenance.
• Rated for 1,000 PSI working pressure, ideal for low-pressure fluid and gas transfer operations.
• Leak-free metal-to-metal seal delivers reliable, gasket-free performance under demanding conditions.
• Precision-engineered components ensure compatibility with standard hammer union systems.

Specifications

• Brand: Catawissa
• Size: 6 in.
• Figure Number: 100
• Material: Forged Steel
• Connection Type: NPT Female Threaded Ends
• Seal Type: Metal-to-Metal
• Working Pressure: 1,000 PSI
• Test Pressure: 1,500 PSI
• Applications: Air, Water, Oil, and Gas Service
• Usage: Industrial and Pipeline Low-Pressure Systems
