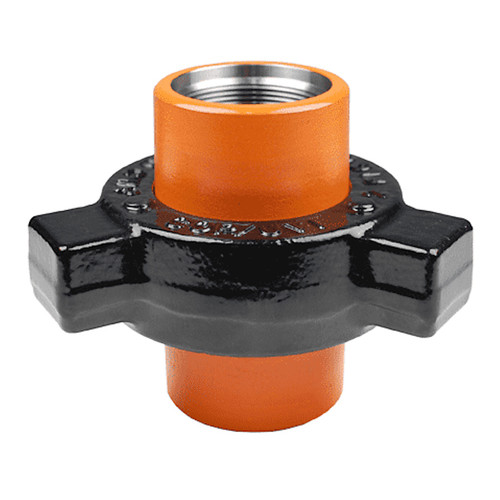

Catawissa 1 1/20 in. Fig 602 Steel Hammer Union

The Catawissa Fig 602 1 1/20 in. Hammer Union is designed for extreme high-pressure applications including oil, gas, steam, and water service. Built from heavy-duty forged steel, it provides superior strength, impact resistance, and long-lasting performance in demanding industrial and oilfield environments. Precision-machined metal-to-metal sealing surfaces ensure a secure, leak-free connection under very high pressures. Rated for 10,000 PSI working pressure and 15,000 PSI test pressure, this union features 1 1/20 in. NPT female threaded ends for quick, safe, and reliable installation.

Features

• Forged steel construction delivers exceptional durability and strength for extreme high-pressure environments.
• 1 1/20 in. NPT female ends allow fast, secure threaded connections for efficient assembly.
• 10,000 PSI working pressure suitable for oilfield, gas, steam, and water service.
• Metal-to-metal seal ensures a leak-free connection without gaskets.
• Precision machining guarantees accurate fit and compatibility with other Fig 602 hammer unions.

Specifications

• Brand: Catawissa
• Size: 1 1/20 in.
• Figure Number: 602
• Material: Forged Steel
• Connection Type: NPT Female Threaded Ends
• Seal Type: Metal-to-Metal
• Working Pressure: 10,000 PSI
• Test Pressure: 15,000 PSI
• Applications: Oil, Gas, Steam, and Water Service
• Usage: Extreme High-Pressure Industrial and Oilfield Environments
